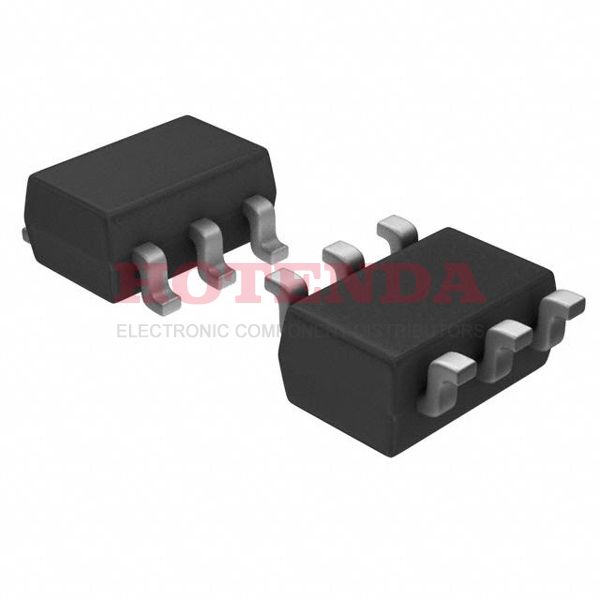

PL500-17TC Overview
As a clock IC, PLLs is packaged using the Tube method. As part of the SOT-23-6 package, this clock generator is embedded. This Clock PLL will be fed by Crystal as its input. A total of 1 circuits are implemented to access the full performance of the electrical part. RF synthesizers based on this clock provide frequencies up to 36MHz maximum. Thanks to the Surface Mount, this electric component can easily be installed on a panel. There are 2.25V~3.63V available for use with this clock PLL. By calculating the test statistics, 0°C~70°C is the appropriate ambient temperature. It's compatible with LVCMOS, TTL logic levels. This electronic component can be classified into Voltage Controlled Crystal Oscillator (VCXO). These related electrical parts are available for the base part number PL500. In addition to this clock generator ic's stable structure and advanced building process, its maximum clock rate is increased to 36MHz ticks per second.
PL500-17TC Features
Available in the SOT-23-6
PL500-17TC Applications
There are a lot of Microchip Technology PL500-17TC Clock Generators applications.
- Laptops
- Signal analyzer
- Clock generation systems
- Deep space exploration
- Frequency synthesis
- Quenching?
- Microwave backhaul IF
- Motor speed controls
- Vector network analyzers (VNA)
- Mechanical devices
