Name: PIC24FJ128GB202-I/MM
Brand: Microchip Technology
SKU: PIC24FJ128GB202-I/MM
Price: 5.44000 USD
Availability: InStock

new-10%

PIC24FJ128GB202-I/MM

Manufacturer part number:PIC24FJ128GB202-I/MM

Manufacturer:Microchip Technology

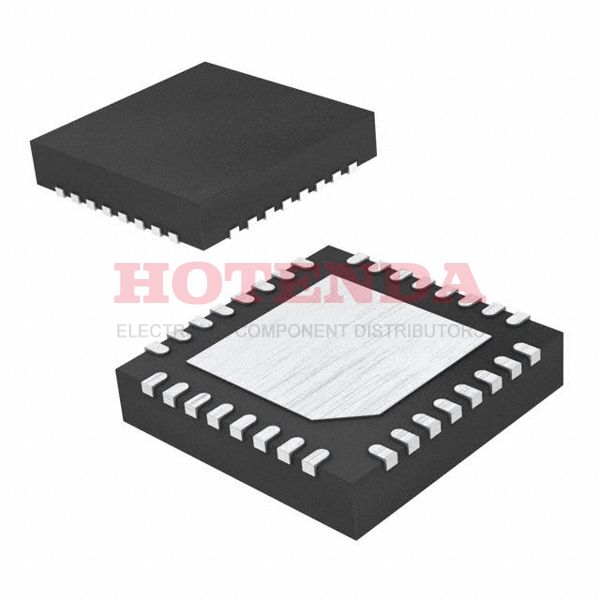

Description:128KB 43K x 24 FLASH PIC 16-Bit Microcontroller PIC® XLP™ 24F Series PIC24FJ128GB202 28 Pin 32MHz 28-VQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC24FJ128GB202-I/MM Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	28-VQFN Exposed Pad
Number of Pins	28
Supplier Device Package	28-QFN-S (6x6)
Mounting Style	SMD/SMT
Interfaces	I2C/SPI/UART
Data Converters	A/D 9x10b/12b
Instruction Set Architecture	RISC
Operating Temperature Classification	Automotive
Package Type	QFN-S EP
Number of Timers - General Purpose	5
Operating Temp Range	-40C to 150C
# I/Os (Max)	20
Interface Type	I2C/SPI/UART/USB
Total Internal Ram Size	8KB(kB)
Device Core Size	16(b)
Operating Supply Voltage (Max)	3.6(V)
Operating Supply Voltage (Typ)	3.3(V)
Rad Hardened	No
Operating Supply Voltage (Min)	2(V)
Programmable	Yes
Mounting	Surface Mount
Family Name	PIC24FJ
Dimensions	6 x 6 x 0.95mm
Typical Operating Supply Voltage	2 → 3.6 V
Maximum Operating Temperature	+85 °C
Minimum Operating Temperature	-40 °C
MSL	-
Number of I/Os	20 I/O
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	PIC
RoHS	Details
Package	Tube
Base Product Number	PIC24FJ128GB202
Mfr	Microchip Technology
Product Status	Active
Operating Temperature	-40°C~85°C TA
Packaging	Tube
Series	PIC® XLP™ 24F
Published	2012
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Max Operating Temperature	85°C
Min Operating Temperature	-40°C
Subcategory	Microcontrollers - MCU
Frequency	32MHz
Base Part Number	PIC24FJ128GB202
Pin Count	28
Operating Temperature (Max)	150C
Operating Temperature (Min)	-40C
Operating Supply Voltage	3.3V
Interface	I2C, SPI, UART
Max Supply Voltage	3.6V
Min Supply Voltage	2V
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	20
Nominal Supply Current	5.7mA
Speed	32MHz
RAM Size	8K x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	2V~3.6V
Core Processor	PIC
Peripherals	AES, Brown-out Detect/Reset, DMA, I2S, HLVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	128KB 43K x 24
Connectivity	I2C, IrDA, LINbus, SmartCard, SPI, UART/USART
Data Converter	A/D 9x10b/12b
Watchdog Timer	Yes
Data Bus Width	16b
Number of Timers/Counters	5
Address Bus Width	16b
Product Type	16-bit Microcontrollers - MCU
Core Architecture	PIC
EEPROM Size	--
Max Frequency	32MHz
Number of Programmable I/O	20
Number of UART Channels	4
Number of ADC Channels	9
Number of PWM Channels	6
Number of I2C Channels	2
Number of SPI Channels	3
Number of USB Channels	1
Number of Ethernet Channels	0
Product Category	16-bit Microcontrollers - MCU
Device Core	PIC
Height	950μm
Length	6mm
Width	6mm
REACH SVHC	No SVHC
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC24FJ128GB202-I/MM Product Details

PIC24FJ128GB202-I/MM Overview

A 28-VQFN Exposed Pad package is included. In total, it has 20 inputs and outputs. This Microcontroller is mounted using the Surface Mount mounting type. Powered by the 16-Bit core, it offers a wide range of capabilities. The type of memory that the program uses is FLASH. The temperature range of this Microcontroller is within the range of -40°C~85°C TA. PIC® XLP™ 24F series components belong to this electrical component. Its program memory size is 128KB 43K x 24. There is a PIC Core Processor inside MCU that provides this device with its power. 128kB memory size belongs to the part. PIC24FJ128GB202 is the base part number that you can use to find alternatives. A good performance can be achieved at a frequency of 32MHz, as long as it is operated at a low power consumption. On the chip, there are 28 pins that are accessible. A total of 5 timers/counters are included in the package. A total of 28 pins are present. There's built-in FLASH memory in the equipment. It is built on a PIC core architecture. This 8 Programmable I/O section allows you to program the device in many different ways depending on what you need. The device has 4 UART channels. In total, there are 9 channels for the ADC on this board. A total of 6 PWM channels are used by the device. Devices like this use an 2-channel PWM controller.
