Name: ATSAM4E16CA-CUR
Brand: Microchip Technology
SKU: ATSAM4E16CA-CUR
Price: 9.71000 USD
Availability: InStock

new

ATSAM4E16CA-CUR

Manufacturer part number:ATSAM4E16CA-CUR

Manufacturer:Microchip Technology

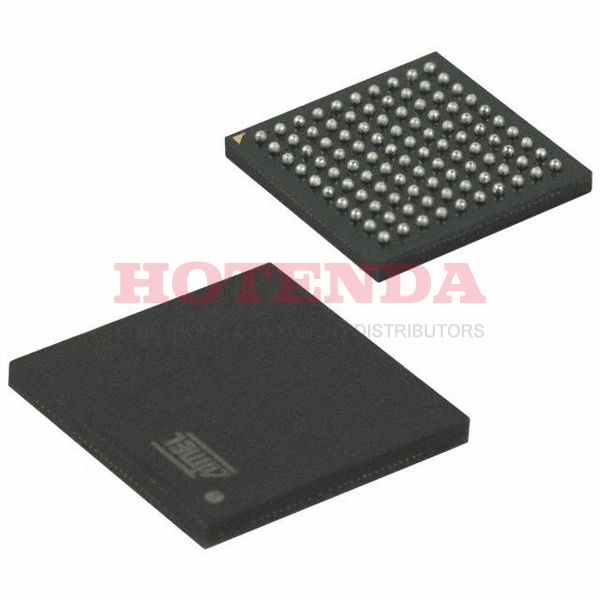

Description:1MB 1M x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller SAM4E Series ATSAM4E 100 Pin 120MHz 1.2V 100-TFBGA

Case Package:SOT-23

Datasheet:ATSAM4E16CA-CUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Plating	Copper, Silver, Tin
Mounting Type	Surface Mount
Package / Case	100-TFBGA
Surface Mount	YES
Number of Pins	100
Supplier Device Package	100-TFBGA (9x9)
Number of Terminals	100
Mounting Style	SMD/SMT
Data Converters	A/D 16x12b, D/A 2x12b
Number of I/Os	79 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	CAN, UART, USART, USB
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATSAM4E
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	79
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	SAM4E
Published	1995
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	1.2V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	120MHz
Base Part Number	ATSAM4E
JESD-30 Code	S-PBGA-B100
Qualification Status	Not Qualified
Power Supplies	1.2V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.08V
Interface	CAN, Ethernet, I2C, IrDA, MMC, SD, SPI, UART, USART, USB
Memory Size	1MB
Oscillator Type	Internal
Number of I/O	79
Speed	120MHz
RAM Size	128K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	1MB 1M x 8
Connectivity	CANbus, Ethernet, IrDA, MMC/SD, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 16x12b; D/A 2x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.1 mm
Number of Timers/Counters	3
Address Bus Width	24
Product Type	ARM Microcontrollers - MCU
ROM (words)	262144
Core Architecture	ARM
EEPROM Size	--
On Chip Program ROM Width	32
CPU Family	CORTEX-M4F
Low Power Mode	YES
External Data Bus Width	8
RAM (words)	32768
RAM (bytes)	131072
Number of ADC Channels	6 Channel
Number of Timers	3
ROM Programmability	FLASH
On Chip Data RAM Width	32
Number of DMA Channels	4
Product Category	ARM Microcontrollers - MCU
Length	9mm
Height Seated (Max)	1.1mm
Width	9 mm
RoHS Status	ROHS3 Compliant

ATSAM4E16CA-CUR Product Details

ATSAM4E16CA-CUR Overview

This Microcontroller comes in a 100-TFBGA package. This Microcontroller has 79 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 32-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in SAM4E Series. The size of the program memory of Microcontroller is 1MB 1M x 8. MCU is powered by ARM® Cortex®-M4 Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 100 terminals. Microcontroller comes with 32 bit size. The component always operates in 1.2V supply voltage. MCU chip has YES DMA channels. The part owns 1MB memory size. You can find alternatives through the base part number ATSAM4E. MCU's frequency is 120MHz. The device works in YES PWM channels. The pin number of the component remains 100. It has 3 timers/counters. The device is embedded with CORTEX-M4F CPU family. It has a ARM core architecture integrated into it. It has a total of 6 Channel ADC channels. There are a series of 3 timers in the Microcontroller chip.
