Name: PIC18F45K22-E/MV
Brand: Microchip Technology
SKU: PIC18F45K22-E/MV
Price: 4.04000 USD
Availability: InStock

new-10%

PIC18F45K22-E/MV

Manufacturer part number:PIC18F45K22-E/MV

Manufacturer:Microchip Technology

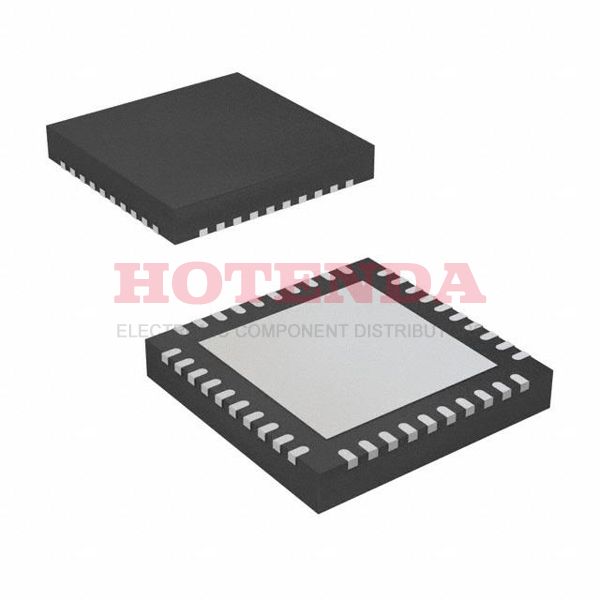

Description:32KB 16K x 16 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 18K Series PIC18F45K22 40 Pin 48MHz 5V 40-UFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC18F45K22-E/MV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	2 Weeks
Mounting Type	Surface Mount
Package / Case	40-UFQFN Exposed Pad
Surface Mount	YES
Number of Pins	40
Supplier Device Package	40-UQFN (5x5)
Mounting Style	SMD/SMT
Interfaces	I2C/SPI/USART
Number of I/Os	36 I/O
Maximum Operating Temperature	+ 125 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C/SPI/USART
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	PIC
RoHS	Details
Package	Tube
Base Product Number	PIC18F45
Mfr	Microchip Technology
Data Converters	A/D 30x10b
Product Status	Active
Operating Temperature	-40°C~125°C TA
Packaging	Tube
Series	PIC® XLP™ 18K
Published	2012
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	40
ECCN Code	3A001.A.3
Terminal Finish	Matte Tin (Sn) - annealed
Additional Feature	ALSO OPERATES 2.3V MINIMUM SUPPLY AT 16 MHZ
HTS Code	8542.31.00.01
Max Power Dissipation	1W
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Supply Voltage	5V
Terminal Pitch	0.4mm
Frequency	48MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC18F45K22
Pin Count	40
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2/5V
Interface	I2C, SPI, UART, USART
Memory Size	32kB
Oscillator Type	Internal
Number of I/O	35
Speed	48MHz
RAM Size	1.5K x 8
Voltage - Supply (Vcc/Vdd)	2.3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, HLVD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	32KB 16K x 16
Connectivity	I2C, SPI, UART/USART
Supply Current-Max	12mA
Bit Size	8
Data Converter	A/D 30x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Number of Timers/Counters	7
Product Type	8-bit Microcontrollers - MCU
ROM (words)	16384
EEPROM Size	256 x 8
On Chip Program ROM Width	16
CPU Family	PIC
Number of Programmable I/O	36
Number of ADC Channels	28 Channel
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Length	5mm
Height Seated (Max)	0.55mm
Width	5 mm
Height	0.48 mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

PIC18F45K22-E/MV Product Details

PIC18F45K22-E/MV Overview

In a 40-UFQFN Exposed Pad package, the MCU is available. 35 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~125°C TA that is operated by this Microcontroller. PIC® XLP™ 18K series components make up this electrical component. 32KB 16K x 16 is the size of its program memory. A PIC Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 40 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 5V volt supply output on the chip. DMA channels number NO. 32kB is the memory size of the part. The base part number PIC18F45K22 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 48MHz. The device works in YES PWM channels. Located on the chip are 40 pins. The clock has 7 timers or counters on it. There are 40 pins on it. In this device, there is a PIC CPU embedded within it. It programs in 36 Programmable I/O. I would like to mention a few additional features such as ALSO OPERATES 2.3V MINIMUM SUPPLY AT 16 MHZ in order to name a few. A total of 28 Channel channels of ADC are available on this device.
