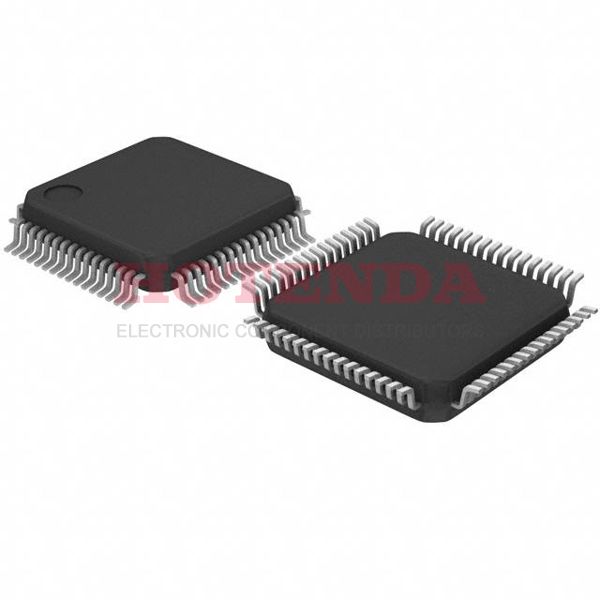

SPC560D40L1C4E0X Description
These 32-bit automotive microcontrollers are a series of system-on-a-chip (SoC) devices designed to play a central role in the development of the next wave of central body controllers, intelligent junction boxes, front modules, peripheral body, door control and seat control applications. This series is one of the next generation integrated automotive microcontrollers based on Power Architecture technology and is specially designed for embedded applications. The advanced and cost-effective e200z0h host processor core of this family of automotive controllers complies with Power Architecture technology, implements only VLE (variable length coding) APU (Auxiliary processing Unit), and provides higher code density. It runs at speeds up to 48 MHz and provides high-performance processing optimized for low power consumption. It makes full use of the available development infrastructure of current power architecture devices and is supported by software drivers, operating systems and configuration codes to assist users in their implementation.
SPC560D40L1C4E0X Features
· AEC-Q100 qualified
· High-performance up to 48 MHz e200z0h CPU
– 32-bit Power Architecture? technology
CPU
– Variable length encoding (VLE)
· Memory
– Up to 256 KB Code Flash with ECC
– Up to 64 (4x16) KB Data Flash with ECC
– Up to 16 KB SRAM with ECC
· Interrupts
– 16 priority levels
– Non-maskable interrupt (NMI)
– Up to 38 external interrupts including
18 wakeup lines
· 16-channel eDMA
· GPIOs: 45 (LQFP64), 79 (LQFP100)
· Timer units
– 4-channel 32-bit periodic interrupt timers
– 4-channel 32-bit system timer module
– System watchdog timer
– 32-bit real-time clock timer
· 16-bit counter time-triggered I/Os
– Up to 28 channels with PWM/MC/IC/OC
– 5 independent counters
– 27-channels with ADC trigger capability
· 12-bit analog-to-digital converter (ADC) with up
to 33 channels
– Up to 61 channels via external multiplexing
– Individual conversion registers
SPC560D40L1C4E0X Applications
embedded applications
