Name: PIC16F1517T-I/MV
Brand: Microchip Technology
SKU: PIC16F1517T-I/MV
Price: 2.19000 USD
Availability: InStock

new-10%

PIC16F1517T-I/MV

Manufacturer part number:PIC16F1517T-I/MV

Manufacturer:Microchip Technology

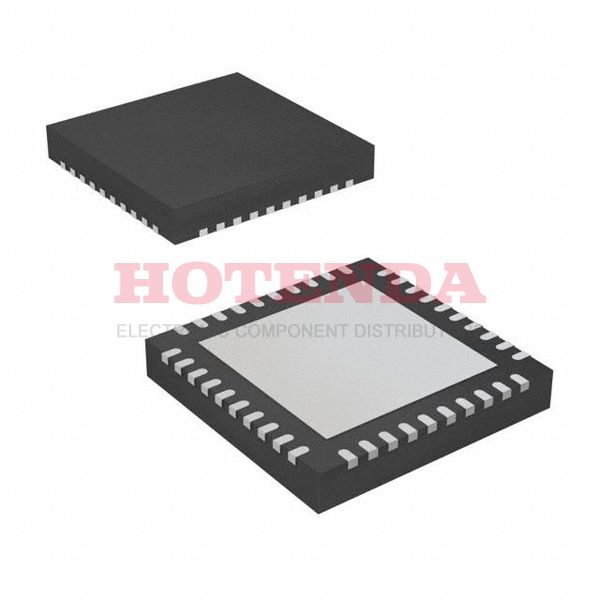

Description:14KB 8K x 14 FLASH PIC 8-Bit Microcontroller PIC® XLP™ 16F Series PIC16F1517 40 Pin 20MHz 40-UFQFN Exposed Pad

Case Package:SOT-23

Datasheet:PIC16F1517T-I/MV Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Surface Mount	YES
Package / Case	40-UFQFN Exposed Pad
Mounting Type	Surface Mount
Number of Pins	40
Supplier Device Package	40-UQFN (5x5)
Mounting Style	SMD/SMT
Interfaces	I2C/SPI/USART
Data Converters	A/D 28x10b
Number of I/Os	36 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, SPI, USART
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	PIC
RoHS	Details
Package	Tape & Reel (TR)
Base Product Number	PIC16F1517
Mfr	Microchip Technology
Product Status	Active
Series	PIC® XLP™ 16F
Published	2011
Packaging	Tape & Reel (TR)
Operating Temperature	-40°C~85°C TA
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	40
Terminal Finish	Matte Tin (Sn) - annealed
Max Power Dissipation	800mW
Terminal Position	QUAD
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.4mm
Frequency	20MHz
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	PIC16F1517
Pin Count	40
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	2.5/5V
Supply Voltage-Min (Vsup)	2.5V
Interface	I2C, LIN, SPI, UART, USART
Memory Size	14kB
Oscillator Type	Internal
Number of I/O	36
Speed	20MHz
RAM Size	512 x 8
Voltage - Supply (Vcc/Vdd)	2.3V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	PIC
Peripherals	Brown-out Detect/Reset, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	14KB 8K x 14
Connectivity	I2C, LINbus, SPI, UART/USART
Bit Size	8
Data Converter	A/D 28x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Number of Timers/Counters	3
Product Type	8-bit Microcontrollers - MCU
ROM (words)	8192
EEPROM Size	--
On Chip Program ROM Width	14
CPU Family	PIC
Number of ADC Channels	28 Channel
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	PIC
Height Seated (Max)	0.55mm
Width	5 mm
Height	0.48 mm
Length	5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

PIC16F1517T-I/MV Product Details

PIC16F1517T-I/MV Overview

This Microcontroller comes in a 40-UFQFN Exposed Pad package. This Microcontroller has 36 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 8-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~85°C TA Operating Temperature. Microcontroller runs in PIC® XLP™ 16F Series. The size of the program memory of Microcontroller is 14KB 8K x 14. MCU is powered by PIC Core Processor. The device belongs to MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs Type. The MCU has a number of 40 terminals. Microcontroller comes with 8 bit size. MCU chip has NO DMA channels. The part owns 14kB memory size. You can find alternatives through the base part number PIC16F1517. MCU's frequency is 20MHz. The device works in YES PWM channels. The pin number of the component remains 40. It has 3 timers/counters. It counts 40 pins. The device is embedded with PIC CPU family. It has a total of 28 Channel ADC channels.
