Name: MK22FN256VLH12
Brand: NXP USA Inc.
SKU: MK22FN256VLH12
Price: 13.27000 USD
Availability: InStock

new

MK22FN256VLH12

Manufacturer part number:MK22FN256VLH12

Manufacturer:NXP USA Inc.

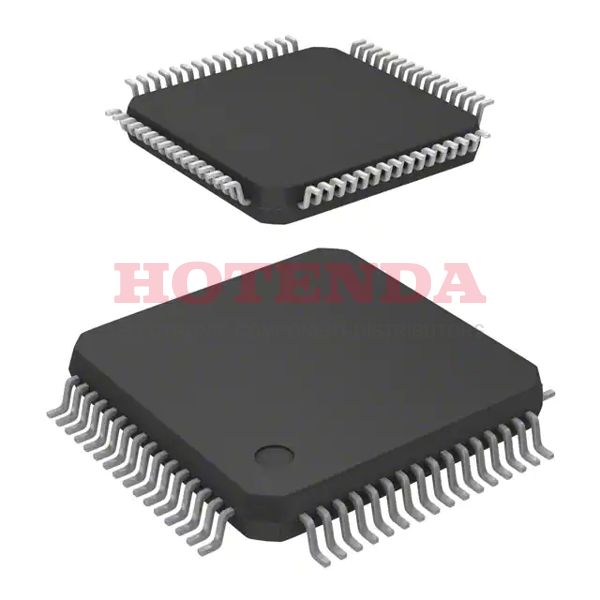

Description:256KB 256K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller Kinetis K20 Series 3.3V 64-LQFP

Case Package:SOT-23

Datasheet:MK22FN256VLH12 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	13 Weeks
Mounting Type	Surface Mount
Package / Case	64-LQFP
Surface Mount	YES
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	Kinetis K20
Published	2014
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
ECCN Code	3A991.A.2
Terminal Finish	MATTE TIN
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	40
JESD-30 Code	S-PQFP-G64
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	1.8/3.3V
Supply Voltage-Min (Vsup)	1.71V
Oscillator Type	Internal
Number of I/O	40
Speed	120MHz
RAM Size	48K x 8
Voltage - Supply (Vcc/Vdd)	1.71V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	DMA, I2S, LVD, POR, PWM, WDT
Clock Frequency	50MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	I2C, IrDA, SPI, UART/USART, USB, USB OTG
Supply Current-Max	32.69mA
Bit Size	32
Data Converter	A/D 22x16b; D/A 1x12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	YES
ROM (words)	262144
CPU Family	CORTEX-M4F
RAM (bytes)	49152
Length	10mm
Width	10mm
RoHS Status	ROHS3 Compliant

MK22FN256VLH12 Product Details

The MK22FN256VLH12 is a 120 MHz ARM? Cortex?-M4-Based Microcontroller with FPU belonging to the Kinetis K22 product family.

120 MHz ARM Cortex-M4 core with DSP instructions delivering 1.25 Dhrystone MIPS per MHz
256 KB of embedded flash and 48 KB of RAM
Serial programming interface (export)
Preprogrammed Kinetis flash loader for one-time, in system factory program
Two 16-bit SAR ADCs (1.2 MS/s in 12bit mode)
One 12-bit DAC
Two analogue comparators (CMP) with 6- bit DAC
Accurate internal voltage referencing
Voltage range (including flash writes): 1.71 to 3.6 V
Temperature range (ambient): -40 to 105°C
