Name: ATXMEGA64A1-C7U
Brand: Microchip Technology
SKU: ATXMEGA64A1-C7U
Availability: InStock

new-10%

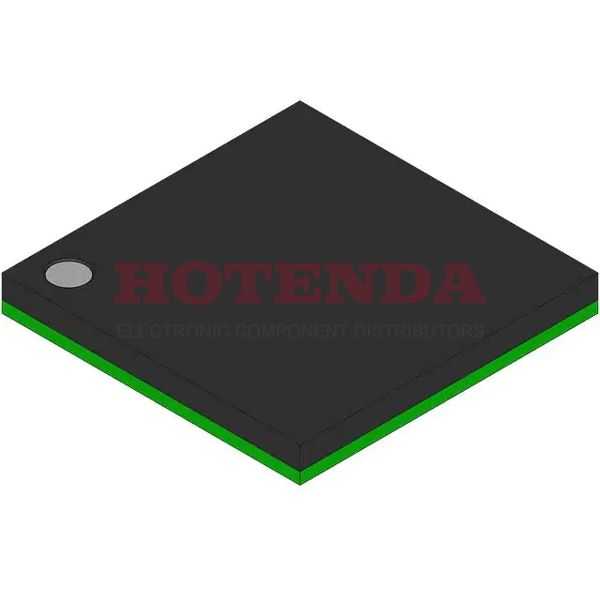

ATXMEGA64A1-C7U

Manufacturer part number:ATXMEGA64A1-C7U

Manufacturer:Microchip Technology

Description:64KB 32K x 16 FLASH AVR 8/16-Bit Microcontroller AVR® XMEGA® A1 Series ATXMEGA64 100 Pin 32MHz 3.3V 100-VFBGA

Case Package:SOT-23

Datasheet:ATXMEGA64A1-C7U Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	4 Weeks
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-VFBGA
Surface Mount	YES
Number of Pins	100
Supplier Device Package	100-VFBGA (7x7)
Number of Terminals	100
Mounting Style	SMD/SMT
Interfaces	SPI/TWI/USART
Data Converters	A/D 16x12b, D/A 4x12b
Number of I/Os	78 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	SPI, TWI, USART
Manufacturer	Microchip
Brand	Microchip Technology
Tradename	XMEGA
RoHS	Details
Package	Tray
Base Product Number	ATXMEGA64
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	78
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	AVR® XMEGA® A1
Published	2013
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Additional Feature	ALSO OPERATES AT 1.6V MINIMUM SUPPLY AT 12 MHZ
Subcategory	Microcontrollers - MCU
Terminal Position	BOTTOM
Terminal Form	BALL
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Frequency	32MHz
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	ATXMEGA64
JESD-30 Code	S-PBGA-B100
Qualification Status	Not Qualified
Operating Supply Voltage	2.5V
Supply Voltage-Max (Vsup)	3.6V
Temperature Grade	INDUSTRIAL
Interface	EBI/EMI, I2C, IrDA, SPI, UART, USART
Memory Size	64kB
Oscillator Type	Internal
Number of I/O	78
Speed	32MHz
RAM Size	4K x 8
Voltage - Supply (Vcc/Vdd)	1.6V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	8/16-Bit
Program Memory Size	64KB 32K x 16
Connectivity	EBI/EMI, I2C, IrDA, SPI, UART/USART
Bit Size	16
Data Converter	A/D 16x12b; D/A 4x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	8b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1 mm
Number of Timers/Counters	8
Product Type	8-bit Microcontrollers - MCU
EEPROM Size	2K x 8
ROM Programmability	FLASH
Product	MCU
Product Category	8-bit Microcontrollers - MCU
Device Core	AVR
Length	7mm
Height Seated (Max)	1mm
Width	7 mm
Height	0.65 mm (Min)
RoHS Status	ROHS3 Compliant

ATXMEGA64A1-C7U Product Details

ATXMEGA64A1-C7U Overview

The package is 100-VFBGA-shaped. There are 78 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 8/16-Bit core architecture. The type of program memory it uses is FLASH. Temperatures in the range of -40°C~85°C TA are operated by this Microcontroller. It is part of the AVR® XMEGA® A1 series of electrical components. Having a size of 64KB 32K x 16, Microcontroller has a program memory of X bytes. A AVR Core Processor is at the core of this Microcontroller. This device belongs to the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. IC Chip 100 has 100 terminations. 16-bits are used for its size. IC Chip has 3.3V volt supply outputs. With YES DMA channels, Microcontroller chip can handle large data transfers. 64kB is the size of the memory in the IC part. Using the base part number ATXMEGA64, you will be able to find alternatives for the part. Using a 32MHz frequency, this electronic part can perform efficiently. Devices work in YES PWM channels. On the chip, 100 pins are accessible. In total, there are 8 timers/counters on the device. In addition to the above, there are other features such as ALSO OPERATES AT 1.6V MINIMUM SUPPLY AT 12 MHZ, to name but a few.
