Name: DSPIC33EP256GP502T-E/SS
Brand: Microchip Technology
SKU: DSPIC33EP256GP502T-E/SS
Availability: InStock

new-10%

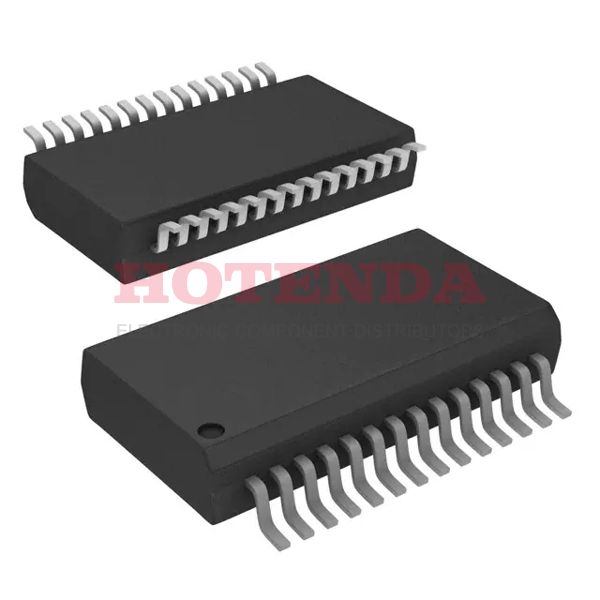

DSPIC33EP256GP502T-E/SS

Manufacturer part number:DSPIC33EP256GP502T-E/SS

Manufacturer:Microchip Technology

Description:256KB 85.5K x 24 FLASH dsPIC 16-Bit Microcontroller Automotive, AEC-Q100, dsPIC™ 33EP Series DSPIC33EP256GP502 28 Pin 3.3V 28-SSOP (0.209, 5.30mm Width)

Case Package:SOT-23

Datasheet:DSPIC33EP256GP502T-E/SS Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Lifecycle Status	Production (Last Updated: 2 years ago)
Mounting Type	Surface Mount
Package / Case	28-SSOP (0.209, 5.30mm Width)
Surface Mount	YES
Number of Pins	28
Supplier Device Package	28-SSOP
Number of Terminals	28
Data Converters	A/D 6x10b/12b
Package	Tape & Reel (TR)
Base Product Number	DSPIC33EP256GP502
Mfr	Microchip Technology
Product Status	Obsolete
RoHS	Compliant
Package Shape	RECTANGULAR
Manufacturer	Microchip Technology Inc
Number of I/O Lines	21
Operating Temperature	-40°C~125°C TA
Packaging	Tape & Reel (TR)
Series	Automotive, AEC-Q100, dsPIC™ 33EP
Published	2012
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	28
ECCN Code	3A001.A.3
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.31.00.01
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.65mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	40
Base Part Number	DSPIC33EP256GP502
Pin Count	28
JESD-30 Code	R-PDSO-G28
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	3.6V
Power Supplies	3.3V
Temperature Grade	AUTOMOTIVE
Supply Voltage-Min (Vsup)	3V
Interface	CAN, I2C, IrDA, LIN, SPI, UART, USART
Oscillator Type	Internal
Number of I/O	21
Speed	60 MIPs
RAM Size	16K x 16
Voltage - Supply (Vcc/Vdd)	3V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER
Core Processor	dsPIC
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency	60MHz
Program Memory Type	FLASH
Core Size	16-Bit
Program Memory Size	256KB 85.5K x 24
Connectivity	CANbus, I2C, IrDA, LINbus, SPI, UART/USART
Supply Current-Max	60mA
Bit Size	16
Data Converter	A/D 6x10b/12b
Has ADC	YES
DMA Channels	YES
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	2 mm
ROM (words)	87381
Core Architecture	dsPIC
EEPROM Size	--
On Chip Program ROM Width	24
Format	FLOATING-POINT
RAM (words)	16384
RAM (bytes)	32768
ROM Programmability	FLASH
Length	10.2mm
Height Seated (Max)	2mm
Width	5.3mm
RoHS Status	ROHS3 Compliant

DSPIC33EP256GP502T-E/SS Product Details

DSPIC33EP256GP502T-E/SS Overview

This Microcontroller comes in a 28-SSOP (0.209, 5.30mm Width) package. This Microcontroller has 21 I/Os. The Mounting Type of the Microcontroller is Surface Mount. The MCU is based on the 16-Bit core. This Microcontroller's program memory type is FLASH. The Microcontroller runs in -40°C~125°C TA Operating Temperature. Microcontroller runs in Automotive, AEC-Q100, dsPIC™ 33EP Series. The size of the program memory of Microcontroller is 256KB 85.5K x 24. MCU is powered by dsPIC Core Processor. The device belongs to MICROCONTROLLER uPs/uCs/Peripheral ICs Type. The MCU has a number of 28 terminals. Microcontroller comes with 16 bit size. The component always operates in 3.3V supply voltage. MCU chip has YES DMA channels. You can find alternatives through the base part number DSPIC33EP256GP502. The device works in YES PWM channels. The pin number of the component remains 28. It counts 28 pins. It is at 60MHz clock frequency. It has a dsPIC core architecture integrated into it.
