Name: XMC4400F64F256ABXQMA1
Brand: Infineon Technologies
SKU: XMC4400F64F256ABXQMA1
Availability: InStock

new-10%

XMC4400F64F256ABXQMA1

Manufacturer part number:XMC4400F64F256ABXQMA1

Manufacturer:Infineon Technologies

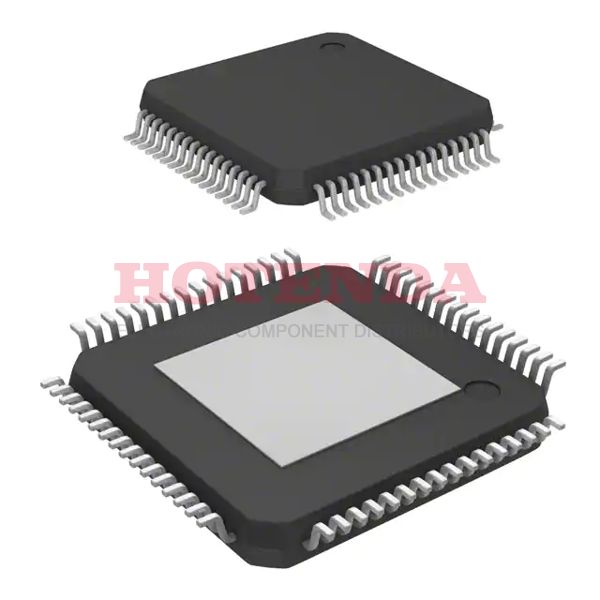

Description:256KB 256K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller XMC4000 Series 64 Pin 120MHz 3.3V 64-LQFP Exposed Pad

Case Package:SOT-23

Datasheet:XMC4400F64F256ABXQMA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	17 Weeks
Mounting Type	Surface Mount
Package / Case	64-LQFP Exposed Pad
Surface Mount	YES
Number of Pins	64
Operating Temperature	-40°C~85°C TA
Packaging	Tray
Series	XMC4000
Published	2014
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	64
Max Power Dissipation	1W
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Frequency	120MHz
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Operating Supply Voltage	3.3V
Supply Voltage-Max (Vsup)	3.63V
Interface	CAN, Ethernet, I2C, I2S, LIN, SPI, UART, USB
Memory Size	256kB
Oscillator Type	Internal
Number of I/O	31
RAM Size	80K x 8
Voltage - Supply (Vcc/Vdd)	3.13V~3.63V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	DMA, I2S, LED, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	256KB 256K x 8
Connectivity	CANbus, Ethernet, I2C, LINbus, SPI, UART, USB
Bit Size	32
Data Converter	A/D 14x12b; D/A 2x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
Halogen Free	Halogen Free
DAC Channels	YES
Number of Timers/Counters	4
Core Architecture	ARM
On Chip Program ROM Width	8
RAM (bytes)	81920
Length	10mm
Height Seated (Max)	1.6mm
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

XMC4400F64F256ABXQMA1 Product Details

XMC4400F64F256ABXQMA1 Overview

There is a 64-LQFP Exposed Pad package available. The board has 31 I/Os. Using the Mounting Type Surface Mount, the MCU is mounted on PCB. A 32-Bit core is used in order to power the IC chip. The type of memory it uses for its program is FLASH. -40°C~85°C TA is the temperature range at which this Microcontroller operates. XMC4000-series components are electrical components. In the case of this Microcontroller, the memory size of the program is 256KB 256K x 8. Powered by a ARM® Cortex®-M4 Core processor. Microcontroller's a MICROCONTROLLER, RISC uPs/uCs/Peripheral IC. IC Chip terminations are 64. As a result, this Microcontroller comes with a 32-bit size. Input voltage for the chip is 3.3V volts. A total of YES DMA channels are available. This IC part has a memory size of 256kB. Performing well when operated at frequency 120MHz can be achieved. Using YES PWM channels, the device works. On the chip, there are 64 pins that can be accessed. It comes with 4 timers/counters that can be set up. The CPU is based on ARM cores.
