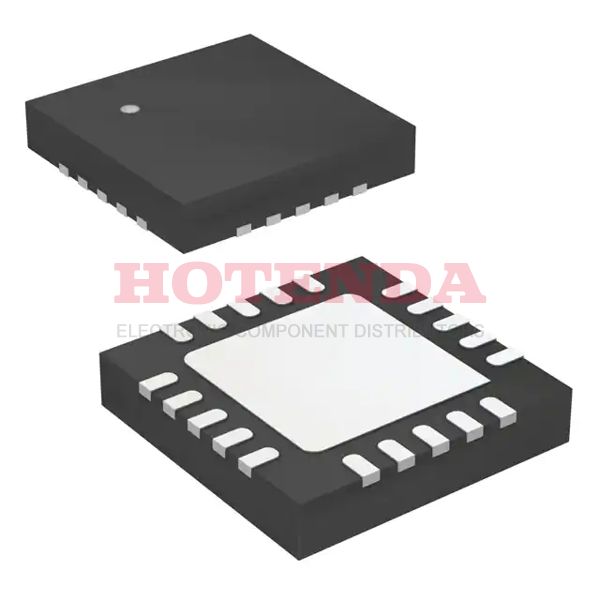

Name: ATTINY441-MUR
Brand: Microchip Technology
SKU: ATTINY441-MUR
Price: 1.36000 USD
Availability: InStock

new-10%

ATTINY441-MUR

Manufacturer part number:ATTINY441-MUR

Manufacturer:Microchip Technology

Description:4KB 4K x 8 FLASH AVR 8-Bit Microcontroller AVR® ATtiny Series ATTINY441 16MHz 3.3V 20-WFQFN Exposed Pad

Case Package:SOT-23

Datasheet:ATTINY441-MUR Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Lifecycle Status	Production (Last Updated: 2 years ago)
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	20-WFQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	20-QFN-EP (4x4)
Weight	123.008581mg
Number of Terminals	20
Mounting Style	SMD/SMT
Interfaces	I2C/SPI/USART
Data Converters	A/D 12x10b
Number of I/Os	12 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, SPI, USARTs
Manufacturer	Microchip
Brand	Microchip Technology / Atmel
Tradename	AVR
RoHS	Details
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATTINY441
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Number of I/O Lines	12
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	AVR® ATtiny
Published	1997
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	20
Max Operating Temperature	85 °C
Min Operating Temperature	-40 °C
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	16MHz
Base Part Number	ATTINY441
JESD-30 Code	S-XQCC-N20
Qualification Status	Not Qualified
Supply Voltage-Max (Vsup)	5.5V
Power Supplies	1.8/5V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.7V
Interface	I2C, SPI, UART, USART
Max Supply Voltage	5.5 V
Min Supply Voltage	1.7 V
Memory Size	4kB
Oscillator Type	Internal
Number of I/O	12
Speed	16MHz
RAM Size	256 x 8
Memory Type	FLASH
Voltage - Supply (Vcc/Vdd)	1.7V~5.5V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	AVR
Peripherals	PWM
Program Memory Type	FLASH
Core Size	8-Bit
Program Memory Size	4KB 4K x 8
Connectivity	I2C, SPI, UART/USART
Supply Current-Max	6 mA
Bit Size	8
Data Converter	A/D 12x10b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	NO
Data Bus Width	8b
PWM Channels	YES
DAC Channels	NO
Seated Height-Max	0.8 mm
Number of Timers/Counters	3
Product Type	8-bit Microcontrollers - MCU
ROM (words)	2048
Core Architecture	AVR
EEPROM Size	256 x 8
CPU Family	AVR RISC
Max Frequency	16 MHz
Number of Programmable I/O	12
RAM (bytes)	256
ROM Programmability	FLASH
Product Category	8-bit Microcontrollers - MCU
Device Core	AVR
Length	4mm
Height Seated (Max)	0.8mm
Width	4 mm
RoHS Status	ROHS3 Compliant

ATTINY441-MUR Product Details

ATTINY441-MUR Overview

In a 20-WFQFN Exposed Pad package, the MCU is available. 12 I/Os are available. The Microcontroller has a mounting type of Surface Mount, which indicates that it is mounted conveniently. The 8-Bit core is the core of the MCU. There is a FLASH type of memory for its program. There is a temperature range of -40°C~85°C TA that is operated by this Microcontroller. AVR® ATtiny series components make up this electrical component. 4KB 4K x 8 is the size of its program memory. A AVR Core processor is used to power the device. This device falls under the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. 20 is the number of terminations on the IC chip that are present. This part works in a 8-bit manner. There is a 3.3V volt supply output on the chip. DMA channels number NO. 4kB is the memory size of the part. The base part number ATTINY441 can be used to find alternatives. The efficiency of this device can be improved when operating at a frequency of 16MHz. The device works in YES PWM channels. The clock has 3 timers or counters on it. In this device, there is a AVR RISC CPU embedded within it. It has built-in FLASH memory. There is an integrated AVR core architecture in it. It programs in 12 Programmable I/O.
