Name: ATSAME70N20A-CNT
Brand: Microchip Technology
SKU: ATSAME70N20A-CNT
Price: 13.31000 USD
Availability: InStock

new

ATSAME70N20A-CNT

Manufacturer part number:ATSAME70N20A-CNT

Manufacturer:Microchip Technology

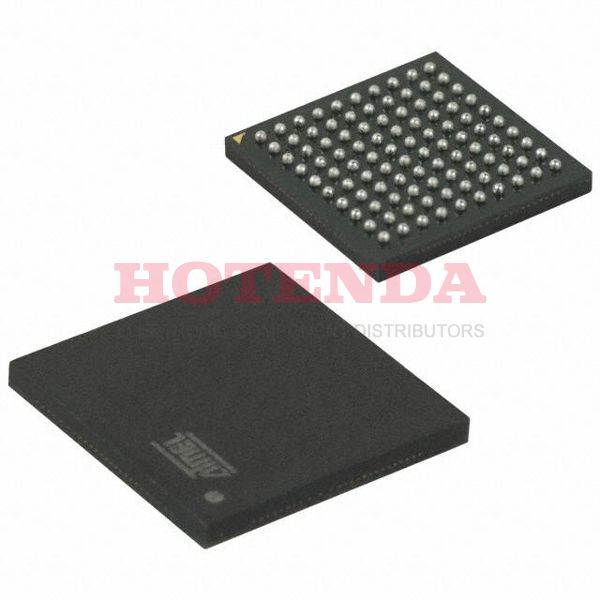

Description:1MB 1M x 8 FLASH ARM® Cortex®-M7 32-Bit Microcontroller SAM E70 Series ATSAME70N 100 Pin 300MHz 1.2V 100-TFBGA

Case Package:SOT-23

Datasheet:ATSAME70N20A-CNT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Contact Plating	Copper, Silver, Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	100-TFBGA
Surface Mount	YES
Number of Pins	100
Supplier Device Package	100-TFBGA (9x9)
Number of Terminals	100
Interfaces	CAN/Ethernet/SPI/TWI
Data Converters	A/D 10x12b, D/A 2x12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATSAME70
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	75
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
Series	SAM E70
Published	2016
JESD-609 Code	e1
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Terminal Finish	Tin/Silver/Copper (Sn/Ag/Cu)
Additional Feature	ALSO OPERATES AS 1.7V TO 3.6V SUPPLY
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	1.2V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Frequency	300MHz
Base Part Number	ATSAME70N
JESD-30 Code	S-XBGA-B100
Supply Voltage-Max (Vsup)	1.32V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.08V
Interface	CAN, Ethernet, I2C, IrDA, LIN, MMC, SD, SDIO, SPI, UART, USART, USB
Memory Size	1MB
Oscillator Type	Internal
Number of I/O	75
Speed	300MHz
RAM Size	384K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M7
Peripherals	Brown-out Detect/Reset, DMA, I2S, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	1MB 1M x 8
Connectivity	CANbus, Ethernet, I2C, IrDA, LINbus, MMC/SD/SDIO, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 10x12b; D/A 2x12b
Watchdog Timer	Yes
Has ADC	YES
DMA Channels	YES
Data Bus Width	32b
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.1 mm
Number of Timers/Counters	4
Address Bus Width	24
ROM (words)	262144
Core Architecture	ARM
EEPROM Size	--
On Chip Program ROM Width	32
Low Power Mode	YES
External Data Bus Width	16
Integrated Cache	YES
RAM (words)	98304
RAM (bytes)	393216
Number of Timers	4
ROM Programmability	FLASH
Number of DMA Channels	24
Device Core	ARM Cortex M7
Length	9mm
Height Seated (Max)	1.1mm
Width	9 mm
RoHS Status	ROHS3 Compliant

ATSAME70N20A-CNT Product Details

ATSAME70N20A-CNT Overview

The package is 100-TFBGA-shaped. There are 75 I/Os. In the case of the IC chip, the type of mounting is Surface Mount. Microcontroller is based on the 32-Bit core architecture. The type of program memory it uses is FLASH. Temperatures in the range of -40°C~105°C TA are operated by this Microcontroller. It is part of the SAM E70 series of electrical components. Having a size of 1MB 1M x 8, Microcontroller has a program memory of X bytes. A ARM® Cortex®-M7 Core Processor is at the core of this Microcontroller. This device belongs to the MICROCONTROLLER, RISC uPs/uCs/Peripheral ICs category. IC Chip 100 has 100 terminations. 32-bits are used for its size. IC Chip has 1.2V volt supply outputs. With YES DMA channels, Microcontroller chip can handle large data transfers. 1MB is the size of the memory in the IC part. Using the base part number ATSAME70N, you will be able to find alternatives for the part. Using a 300MHz frequency, this electronic part can perform efficiently. Devices work in YES PWM channels. On the chip, 100 pins are accessible. In total, there are 4 timers/counters on the device. In addition, it comes with a ARM core architecture. In addition to the above, there are other features such as ALSO OPERATES AS 1.7V TO 3.6V SUPPLY, to name but a few. IC chip bits total 4.
