Name: ATSAML22G17A-MUT
Brand: Microchip Technology
SKU: ATSAML22G17A-MUT
Price: 4.66000 USD
Availability: InStock

new-10%

ATSAML22G17A-MUT

Manufacturer part number:ATSAML22G17A-MUT

Manufacturer:Microchip Technology

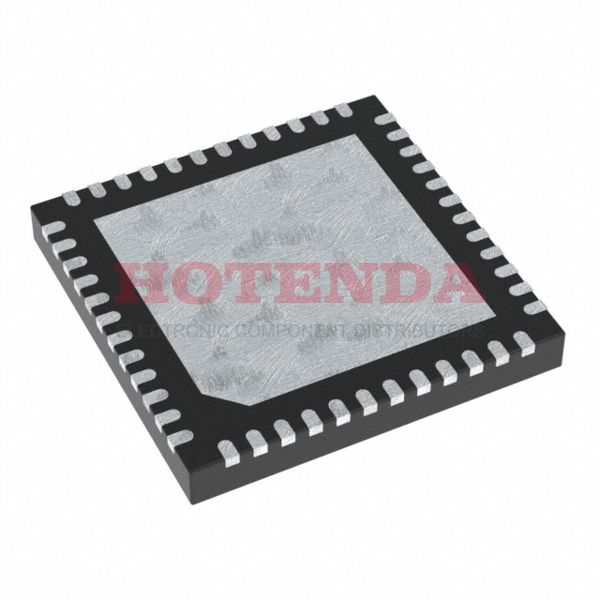

Description:128KB 128K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller SAM L22G Series ATSAML22G 32MHz 3.3V 48-VFQFN Exposed Pad

Case Package:SOT-23

Datasheet:ATSAML22G17A-MUT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Surface Mount
Package / Case	48-VFQFN Exposed Pad
Surface Mount	YES
Supplier Device Package	48-QFN (7x7)
Number of Terminals	48
Mounting Style	SMD/SMT
Interfaces	I2C/SPI/USART/USB
Data Converters	A/D 10x12b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATSAML22
Mfr	Microchip Technology
Product Status	Active
Number of I/Os	36 I/O
Maximum Operating Temperature	+ 85 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, SPI, UART, USART
Manufacturer	Microchip
Brand	Microchip Technology
RoHS	Details
Package Shape	SQUARE
Number of I/O Lines	36
Operating Temperature	-40°C~85°C TA
Packaging	Tape & Reel (TR)
Series	SAM L22G
Published	2016
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	48
Subcategory	Microcontrollers - MCU
Terminal Position	QUAD
Terminal Form	NO LEAD
Supply Voltage	3.3V
Terminal Pitch	0.5mm
Reach Compliance Code	compliant
Frequency	32MHz
Base Part Number	ATSAML22G
JESD-30 Code	S-XQCC-N48
Supply Voltage-Max (Vsup)	3.63V
Supply Voltage-Min (Vsup)	1.62V
Interface	I2C, SPI, UART, USART, USB
Memory Size	128kB
Oscillator Type	Internal
Number of I/O	36
Speed	32MHz
RAM Size	16K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.63V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	128KB 128K x 8
Connectivity	I2C, SPI, UART/USART, USB
Bit Size	32
Data Converter	A/D 10x12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	32 Bit
DAC Channels	NO
Seated Height-Max	0.9 mm
Number of Timers/Counters	4 Timer
Product Type	ARM Microcontrollers - MCU
ROM (words)	32768
Core Architecture	ARM
EEPROM Size	--
On Chip Program ROM Width	32
Low Power Mode	YES
Screening Level	ISO/TS-16949
Integrated Cache	YES
RAM (words)	4096
RAM (bytes)	16384
Number of ADC Channels	10 Channel
Number of Timers	5
ROM Programmability	FLASH
Number of External Interrupts	16
On Chip Data RAM Width	32
Product	MCU
Product Category	ARM Microcontrollers - MCU
Device Core	ARM Cortex M0+
Length	7mm
Height Seated (Max)	0.9mm
Width	7mm
RoHS Status	ROHS3 Compliant

ATSAML22G17A-MUT Product Details

ATSAML22G17A-MUT Overview
