Name: ATSAMD20E16B-ANT
Brand: Microchip Technology
SKU: ATSAMD20E16B-ANT
Price: 3.05000 USD
Availability: InStock

new-10%

ATSAMD20E16B-ANT

Manufacturer part number:ATSAMD20E16B-ANT

Manufacturer:Microchip Technology

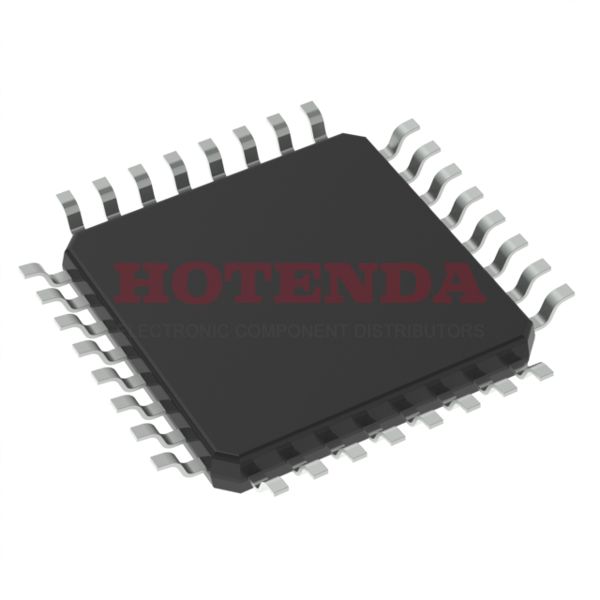

Description:64KB 64K x 8 FLASH ARM® Cortex®-M0+ 32-Bit Microcontroller SAM D20E Series ATSAMD20E16 3.3V 32-TQFP

Case Package:SOT-23

Datasheet:ATSAMD20E16B-ANT Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	11 Weeks
Mounting Type	Surface Mount
Package / Case	32-TQFP
Surface Mount	YES
Supplier Device Package	32-TQFP (7x7)
Number of Terminals	32
Mounting Style	SMD/SMT
Data Converters	A/D 10x12b, D/A 1x10b
Package	Tape & Reel (TR);Cut Tape (CT);Digi-Reel®;
Base Product Number	ATSAMD20
Mfr	Microchip Technology
Product Status	Active
Package Shape	SQUARE
Manufacturer	Microchip Technology Inc
Number of I/O Lines	26
Number of I/Os	26 I/O
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Interface Type	I2C, SPI, UART, USART
Operating Temperature	-40°C~105°C TA
Packaging	Tape & Reel (TR)
Series	SAM D20E
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	32
Terminal Finish	Matte Tin (Sn)
HTS Code	8542.31.00.01
Terminal Position	QUAD
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Supply Voltage	3.3V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Time@Peak Reflow Temperature-Max (s)	30
Base Part Number	ATSAMD20E16
JESD-30 Code	S-PQFP-G32
Supply Voltage-Max (Vsup)	3.63V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.62V
Oscillator Type	Internal
Number of I/O	26
Speed	48MHz
RAM Size	8K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M0+
Peripherals	Brown-out Detect/Reset, POR, WDT
Clock Frequency	32MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	64KB 64K x 8
Connectivity	I2C, SPI, UART/USART
Bit Size	32
Data Converter	A/D 10x12b; D/A 1x10b
Has ADC	YES
DMA Channels	NO
Data Bus Width	32 bit
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.2 mm
ROM (words)	65536
EEPROM Size	--
On Chip Program ROM Width	8
Screening Level	TS 16949
RAM (bytes)	8192
ROM Programmability	FLASH
Length	7mm
Height Seated (Max)	1.2mm
Width	7mm
RoHS Status	Non-RoHS Compliant

ATSAMD20E16B-ANT Product Details

ATSAMD20E16B-ANT Overview

Packaged in a 32-TQFP format. A total of 26 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 32-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~105°C TA. A SAM D20E series electrical component is used in this application. This program has a program memory of 64KB 64K x 8 bytes, which is the size of the program. With a ARM® Cortex®-M0+ Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER, RISC uPs/uCs/peripheral parts. There are 32 terminations on the IC chip, which means there are 32 terminations on the integrated circuit chip. In addition, MCU chip comes with a 32-bit size. Microcontroller chip has outputs of 3.3V volts. The system has NO channels for DMA communication. Alternatives can be found by searching through the base part number ATSAMD20E16 to find them. This MCU Chip uses YES PWM channels to operate. It runs on a 32MHz clock.
