Name: ATSAM4S2CB-CN
Brand: Microchip Technology
SKU: ATSAM4S2CB-CN
Price: 4.82000 USD
Availability: InStock

new-10%

ATSAM4S2CB-CN

Manufacturer part number:ATSAM4S2CB-CN

Manufacturer:Microchip Technology

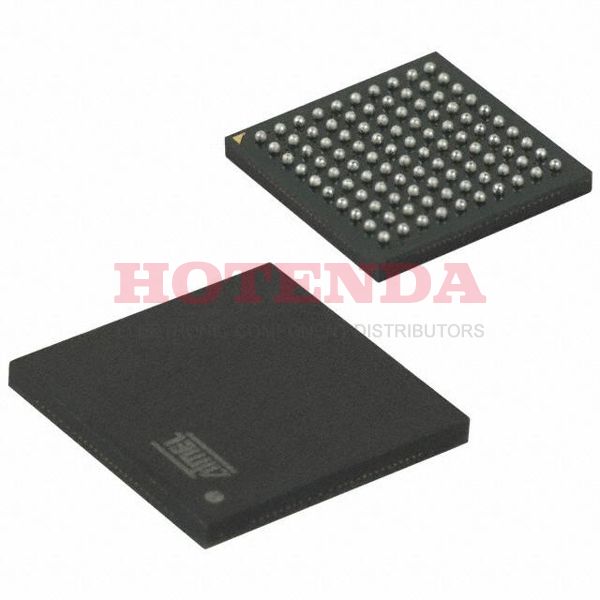

Description:128KB 128K x 8 FLASH ARM® Cortex®-M4 32-Bit Microcontroller SAM4S Series ATSAM4S2 1.2V 100-TFBGA

Case Package:SOT-23

Datasheet:ATSAM4S2CB-CN Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	7 Weeks
Mounting Type	Surface Mount
Package / Case	100-TFBGA
Surface Mount	YES
Supplier Device Package	100-TFBGA (9x9)
Number of Terminals	100
Mounting Style	SMD/SMT
Data Converters	A/D 16x12b, D/A 2x12b
Package	Tray
Base Product Number	ATSAM4S
Mfr	Microchip Technology
Product Status	Active
DAC Resolution	12 bit
Number of I/Os	79 I/O
Maximum Operating Temperature	+ 105 C
Minimum Operating Temperature	- 40 C
Interface Type	I2S, SPI, UART, USART, USB
Manufacturer	Microchip
Brand	Microchip Technology
Package Shape	SQUARE
Number of I/O Lines	79
Operating Temperature	-40°C~105°C TA
Packaging	Tray
Series	SAM4S
Part Status	Active
Moisture Sensitivity Level (MSL)	3 (168 Hours)
Number of Terminations	100
Subcategory	Microcontrollers - MCU
Terminal Position	BOTTOM
Terminal Form	BALL
Supply Voltage	1.2V
Terminal Pitch	0.8mm
Reach Compliance Code	compliant
Base Part Number	ATSAM4S2
JESD-30 Code	S-PBGA-B100
Supply Voltage-Max (Vsup)	1.32V
Temperature Grade	INDUSTRIAL
Supply Voltage-Min (Vsup)	1.08V
Oscillator Type	Internal
Number of I/O	79
Speed	120MHz
RAM Size	64K x 8
Voltage - Supply (Vcc/Vdd)	1.62V~3.6V
uPs/uCs/Peripheral ICs Type	MICROCONTROLLER, RISC
Core Processor	ARM® Cortex®-M4
Peripherals	Brown-out Detect/Reset, DMA, POR, PWM, WDT
Clock Frequency	20MHz
Program Memory Type	FLASH
Core Size	32-Bit
Program Memory Size	128KB 128K x 8
Connectivity	EBI/EMI, I2C, IrDA, Memory Card, SPI, SSC, UART/USART, USB
Bit Size	32
Data Converter	A/D 16x12b; D/A 2x12b
Has ADC	YES
DMA Channels	YES
Data Bus Width	32 bit
PWM Channels	YES
DAC Channels	YES
Seated Height-Max	1.1 mm
Number of Timers/Counters	2 Timer
Address Bus Width	24
Product Type	ARM Microcontrollers - MCU
EEPROM Size	--
On Chip Program ROM Width	8
External Data Bus Width	8
Number of ADC Channels	16 Channel
ROM Programmability	FLASH
Product	MCU+DSP
Product Category	ARM Microcontrollers - MCU
Length	9mm
Height Seated (Max)	1.1mm
Width	9mm
RoHS Status	ROHS3 Compliant

ATSAM4S2CB-CN Product Details

ATSAM4S2CB-CN Overview

Packaged in a 100-TFBGA format. A total of 79 I/Os are on the Microcontroller. Surface Mount is the mounting type of the Microcontroller that is attached to the panel. This Microcontroller is based on a core called 32-Bit. The type of its program memory is FLASH. In this Microcontroller, temperature is controlled within the range -40°C~105°C TA. A SAM4S series electrical component is used in this application. This program has a program memory of 128KB 128K x 8 bytes, which is the size of the program. With a ARM® Cortex®-M4 Core Processor, Microcontroller is fast and efficient. ICs for MICROCONTROLLER, RISC uPs/uCs/peripheral parts. There are 100 terminations on the IC chip, which means there are 100 terminations on the integrated circuit chip. In addition, MCU chip comes with a 32-bit size. Microcontroller chip has outputs of 1.2V volts. The system has YES channels for DMA communication. Alternatives can be found by searching through the base part number ATSAM4S2 to find them. This MCU Chip uses YES PWM channels to operate. There are 2 Timer timers/counters in this device. It runs on a 20MHz clock. It consists of 16 Channel channels in total for the ADC.
