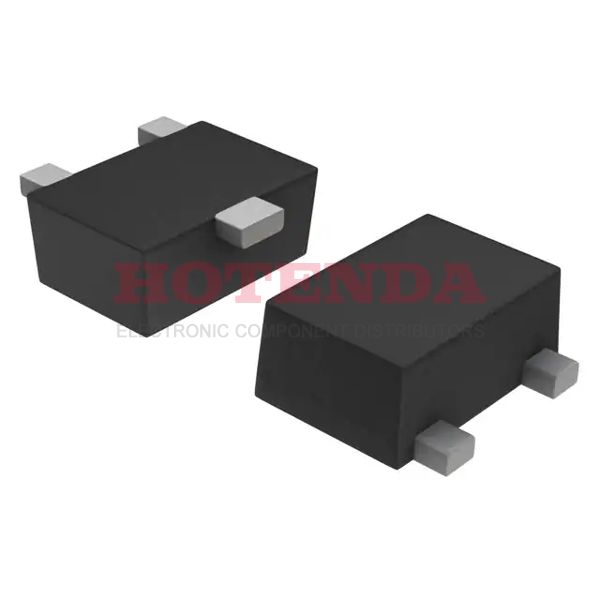

BAT54CM-TP

Name: BAT54CM-TP
Brand: Micro Commercial Co
SKU: BAT54CM-TP
Price: 0.35000 USD
Availability: InStock

new-10%

Manufacturer part number:BAT54CM-TP

Manufacturer:Micro Commercial Co

Description:BAT54CM-TP datasheet pdf and Diodes - Rectifiers - Arrays product details from Micro Commercial Co stock available on our website

Case Package:SOT-23

Datasheet:BAT54CM-TP Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Surface Mount
Package / Case	SOT-723
Surface Mount	YES
Diode Element Material	SILICON
Packaging	Cut Tape (CT)
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Terminal Position	DUAL
Terminal Form	FLAT
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	10
JESD-30 Code	R-PDSO-F3
Operating Temperature (Max)	150°C
Number of Elements	2
Power Dissipation-Max	0.15W
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Diode Type	Schottky
Current - Reverse Leakage @ Vr	2μA @ 25V
Voltage - Forward (Vf) (Max) @ If	1V @ 100mA
Operating Temperature - Junction	-55°C~150°C
Output Current-Max	0.2A
Voltage - DC Reverse (Vr) (Max)	30V
Current - Average Rectified (Io)	200mA DC
Reverse Recovery Time	5ns
Rep Pk Reverse Voltage-Max	30V
Diode Configuration	1 Pair Common Cathode
RoHS Status	ROHS3 Compliant
