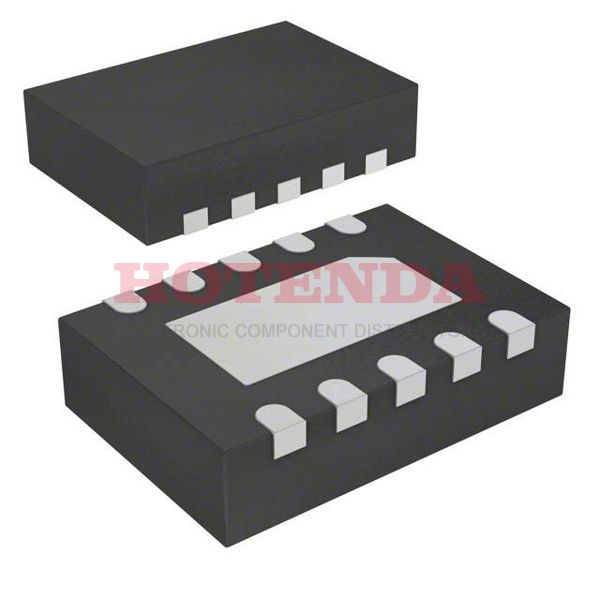

MAX17502EATB+ Overview
As a result of the use of the Strip package, the performance of this voltage regulator is optimized. Throughout this voltage regulator, there are 10 terminations. There is one type of analog IC that this voltage regulator is equipped with, and that is the SWITCHING REGULATOR type. For space-saving purposes, this voltage regulator is available in the 10-WFDFN Exposed Pad package. There are 1 outputs configured on this voltage regulator 12v. As you can see, this DC DC switching regulator generates Fixed output on its output pins. This voltage regulator 12v fits the Surface Mount mounting. Voltage regulators should be operated at -40°C~125°C TJ temperature while operating. Voltage regulator's switching frequency reaches 600kHz. There is a maximum input voltage of 60V for this voltage regulator 12v. To meet the operation requirements, voltage regulator is designed to provide 24V as the nominal input voltage. This voltage regulator is included in the Switching Regulator or Controllers subcategory. As part of the MAX17502 series of regulators, the voltage regulators can be found. The voltage DC DC switching regulator can produce is 3.3V volts. There are 10 pins used for switching regulator operation. In order to meet the requirements of the switching regulator operation, the maximum output current reaches 1A A. A maximum voltage of 3.3V can be obtained from the regulator voltage. In the Himalaya family, this part palys an important role in DC DC switching regulator's traget applications. The 4.5V V dc to dc voltage regulator's minimum supply voltage ensures reliable performance.
MAX17502EATB+ Features
1 outputs
10 pins
MAX17502EATB+ Applications
There are a lot of Maxim Integrated MAX17502EATB+ Voltage Regulators applications.
- Elevator lighting
- Industrial robots
- Linear guide
- Game consoles
- Wide-range voltage regulation circuits
- Milling machines
- Access control systems
- Program control systems
- Printing
- Precision electronic equipment
