Name: MAX13083ECPD+
Brand: Maxim Integrated
SKU: MAX13083ECPD+
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	6 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	14-DIP (0.300, 7.62mm)
Number of Pins	14
Operating Temperature	0°C~70°C
Packaging	Tube
Published	2011
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	14
ECCN Code	EAR99
Type	Transceiver
Terminal Finish	MATTE TIN
Subcategory	Line Driver or Receivers
Technology	BICMOS
Voltage - Supply	4.5V~5.5V
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	260
Number of Functions	1
Supply Voltage	5V
Terminal Pitch	2.54mm
Base Part Number	MAX13083E
Pin Count	14
Operating Supply Voltage	5V
Power Supplies	5V
Nominal Supply Current	1.8mA
Logic Function	Receiver, Transceiver
Data Rate	250kbps
Differential Output	YES
Protocol	RS422, RS485
Input Characteristics	DIFFERENTIAL SCHMITT TRIGGER
Number of Drivers/Receivers	1/1
Driver Number of Bits	1
Receiver Number of Bits	1
Duplex	Full
Receiver Hysteresis	100mV
Interface Standard	EIA-422; EIA-485
Number of Transceivers	1
Receive Delay-Max	200 ns
Out Swing-Min	2 V
Height Seated (Max)	4.572mm
Width	7.62mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

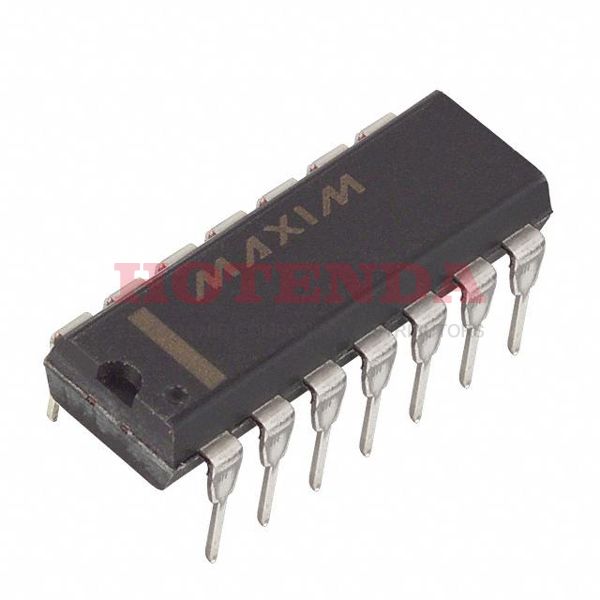

MAX13083ECPD+ Product Details

MAX13083ECPD+ Overview

Driver ICs with enhanced 14-DIP (0.300, 7.62mm) packages are excellent for driving LEDs with common characteristics.The Tube package houses this receiver.Since this is a Transceiver can transceiver, many solutions can use it for a variety of functions.On any Through Hole-type PCB or development board, this wide receiver can be placed.A differential driver like this uses 4.5V~5.5V of power.The field can have up to 1/1 eligible receivers/drivers at once when using this electronic part.This ic receiver has been primarily designed for applications where the operating temperature is 0°C~70°C.With a voltage range of 5V, this driver IC can operate efficiently.For driving and receiving signals from data, this wide receiver has 14 terminations integrated.ICs that are packaged with market standard pinouts are available on the market.For more variants of this part, try searching with the base part number MAX13083E, which indicates the product type, temperature, package, etc.An enhanced power dissipation driver IC with 14 pins.Its package size is drastically reduced by downsizing ICs and utilizing high-density Through Hole mounting techniques.As a result of the ic receiver, the resolution of the driver was increased to 1 bits.It is typical for this receiver to have a resolution of 1 bits when it is specified.This transceiver module is designed to operate from an input voltage supply of 5V.A subcategory named Line Driver or Receivers can be used to group this rf transceiver module.Driver ICs such as this one are designed to operate from 5V power sources.There are 1 transceivers implemented in this module isolated transceiver.
