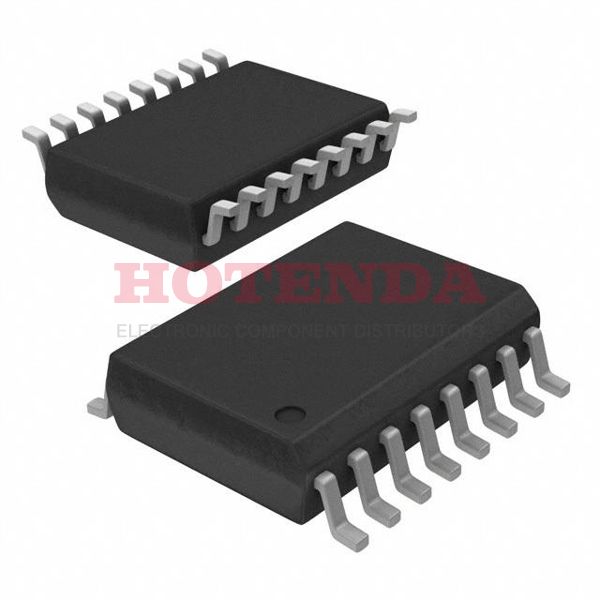

Name: MAX204EWE+T
Brand: Maxim Integrated
SKU: MAX204EWE+T
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	16-SOIC (0.295, 7.50mm Width)
Number of Pins	16
Operating Temperature	-40°C~85°C
Packaging	Tape & Reel (TR)
Published	2012
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Type	Driver
Terminal Finish	Matte Tin (Sn)
Additional Feature	EXTERNAL CHARGE PUMP
Technology	CMOS
Voltage - Supply	4.5V~5.5V
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
Number of Functions	4
Supply Voltage	5V
Terminal Pitch	1.27mm
Base Part Number	MAX204
Pin Count	16
Operating Supply Voltage	5V
Power Supplies	5V
Number of I/O	8
Nominal Supply Current	20mA
Propagation Delay	10 μs
Data Rate	120Kbps
Output Characteristics	TOTEM-POLE
Differential Output	NO
Output Polarity	INVERTED
Protocol	RS232
Input Characteristics	STANDARD
Number of Drivers/Receivers	4/0
Number of Drivers	4
Receive Delay-Max	10000 ns
Transmit Delay-Max	10000 ns
Out Swing-Min	10 V
Height Seated (Max)	2.65mm
Length	10.3mm
Width	7.5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

MAX204EWE+T Product Details

MAX204EWE+T Overview

LED drivers with the enhanced 16-SOIC (0.295, 7.50mm Width) package will be able to drive a variety of common LEDs with ease.The package of this receiver is Tape & Reel (TR).Being a Driver can transceiver, this part has empowered many solutions to serve for a variety of applications.Any Surface Mount-type PCB or development board can be used with this wide receiver.This differential driver uses 4.5V~5.5V for power supply.It is possible to have up to 4/0 receivers/drivers in use simultaneously with this electronic part.As its name implies, this ic receiver is designed for applications where -40°C~85°C is the operating temperature.An operating voltage range of 5V is suitable for this line driver ic.This integrated circuit has 16 terminations designed for driving and receiving signals from data.Transceiver comes with 16 standard pinouts that meet the market's requirements.This part number MAX204 can be used to search for more variants based on the product type, temperature, package, etc.It is a 16-pin driver IC with enhanced power dissipation controls.Its package size is drastically reduced by downsizing ICs and utilizing high-density Surface Mount mounting techniques.There is a supply voltage of 5V on the input of this transceiver module, so it can be operated from that source.IC5V is a high performance driver IC designed to work with a 5V power supply.The integrator circuit has embedded 4 drivers.Additionally, the optical transceiver module's EXTERNAL CHARGE PUMP function provides improved signal management accuracy and stability.There are 8 serial I/Os on board this IC, and it has a standard VGA interface.
