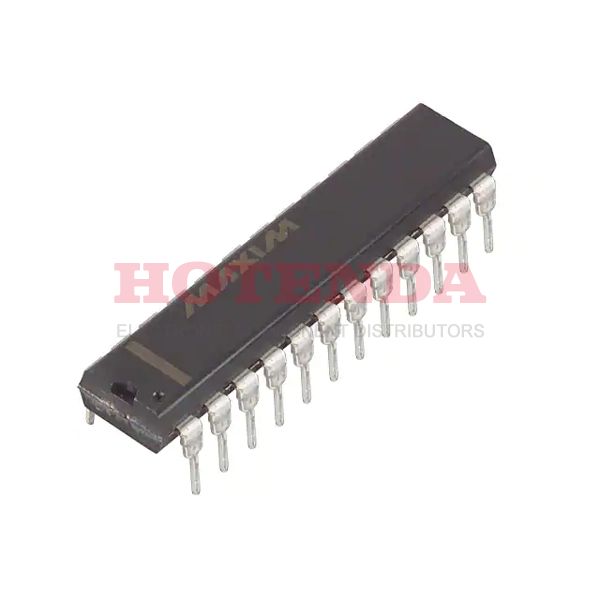

Name: MAX238MRG/883B
Brand: Maxim Integrated
SKU: MAX238MRG/883B
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	24-CDIP (0.300, 7.62mm)
Number of Pins	24
Operating Temperature	-55°C~125°C
Packaging	Tube
Published	2000
JESD-609 Code	e0
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	24
ECCN Code	EAR99
Type	Transceiver
Terminal Finish	Tin/Lead (Sn/Pb)
Additional Feature	EXTERNAL CHARGE PUMP
Subcategory	Line Driver or Receivers
Technology	CMOS
Voltage - Supply	4.5V~5.5V
Terminal Position	DUAL
Peak Reflow Temperature (Cel)	240
Number of Functions	1
Supply Voltage	5V
[email protected] Reflow Temperature-Max (s)	20
Pin Count	24
Operating Supply Voltage	5V
Power Supplies	5V
Number of I/O	16
Nominal Supply Current	15mA
Propagation Delay	10 μs
Logic Function	Receiver, Transceiver
Data Rate	120Kbps
Differential Output	NO
Protocol	RS232
Input Characteristics	SCHMITT TRIGGER
Number of Drivers/Receivers	4/4
Receiver Number of Bits	4
Receiver Hysteresis	500mV
Number of Drivers	4
Number of Transceivers	1
High Level Input Current-Max	0.0002A
Height Seated (Max)	5.08mm
Width	7.62mm
Radiation Hardening	No
RoHS Status	Non-RoHS Compliant

MAX238MRG/883B Product Details

MAX238MRG/883B Overview

The enhanced 24-CDIP (0.300, 7.62mm) package makes it an excellent LED driver.Tube package is used to mount this receiver.Since this part is a Transceiver can transceiver, a number of solutions have been able to utiliTransceivere it for various purposes.Any Through Hole-type PCB or development board can be used with this wide receiver.This differential driver consumes 4.5V~5.5V for its power supplyAs many as 4/4 receivers/drivers are eligible for use on this electronic part.IC receiver is designed for applications with a temperature of -55°C~125°C.Driver ICs with a supply voltage range of 5V can operate efficiently.Wide receiver has 24 terminations built in for driving or receiving signals from data.A package consisting of 24 market standard pinouts is provided with this integrated circuit.It is a 24-pin driver IC with enhanced power dissipation controls.Optical transceiver package size is greatly reduced due to downsizing of the ICs and high-density Through Hole mounting technologies.There is usually a 4-bit resolution specified for this receiver when it is used.There is a supply voltage of 5V on the input of this transceiver module, so it can be operated from that source.A rf transceiver module named Line Driver or Receivers belongs to this subcategory.Driver ICs are designed to work with a 5V power supply and this driver IC is one of them.This IC implements 1 transceivers overall.On the integrator circuit are embedded 4 drivers.In addition, the optical transceiver module incorporates a EXTERNAL CHARGE PUMP function that improves the overall stability and accuracy of the signal management.There are 16 standard serial I/O ports on this IC, which makes it a very versatile one.
