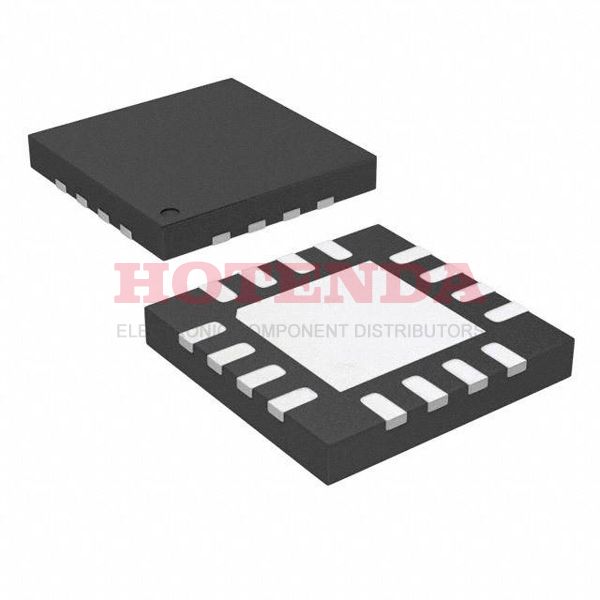

Name: LTC3604EUD
Brand: Linear Technology/Analog Devices
SKU: LTC3604EUD
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Mounting Type	Surface Mount
Package / Case	16-WFQFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C TJ
Packaging	Tube
JESD-609 Code	e3
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Subcategory	Switching Regulator or Controllers
Technology	CMOS
Terminal Position	QUAD
Terminal Form	NO LEAD
Peak Reflow Temperature (Cel)	260
Terminal Pitch	0.5mm
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Function	Step-Down
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	15V
Output Type	Adjustable
Voltage - Input (Min)	3.6V
Input Voltage-Nom	12V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Current - Output	2.5A
Voltage - Output (Min/Fixed)	0.6V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	2MHz~4MHz
Synchronous Rectifier	Yes
Voltage - Output (Max)	14.52V
Height Seated (Max)	0.8mm
Length	3mm
Width	3mm
RoHS Status	Non-RoHS Compliant

LTC3604EUD Product Details

LTC3604EUD Overview

optimized performance is achieved by utilizing the Tube package in this voltage regulator. This harley voltage regulator has 16 terminations. There are two types of analog ICs on this voltage regulator. The first type is a SWITCHING REGULATOR-type IC. Due to DC DC switching regulator's space saving design, this voltage regulator is available in a 16-WFQFN Exposed Pad package. A total of 1 outputs are configured in this voltage regulator. DC DC switching regulators like this one generate Adjustable outputs on their output pins to handle the power management. This switching regulator is designed to fit the Surface Mount mounting system. Voltage regulators should be operated at -40°C~125°C TJ temperature while operating. Voltage regulator's switching frequency reaches 2MHz~4MHz. A dc to dc voltage regulator's minimum input voltage of 3.6V is required for this voltage regulator to operate. According to the table below, DC DC switching regulator's output voltage (Min/Fixed) is equal to 0.6V. As a result of the 2.5A output current, voltage regulator offers maximum flexibility in design. 15V volts is DC DC switching regulator's maximum input voltage. A regulator voltage's peak reflow temperature amounts to 260 being indestructible. To meet the operation requirements, voltage regulator is designed to provide 12V as the nominal input voltage. A voltage regulator 12v such as this falls under the Switching Regulator or Controllers category and belongs to this category. On the basis of the maximum output voltage of 14.52V, adjusting voltage regulator can be operated easily.
