Name: MAX16938ATERA/V+
Brand: Maxim Integrated
SKU: MAX16938ATERA/V+
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	15 Weeks
Mounting Type	Surface Mount

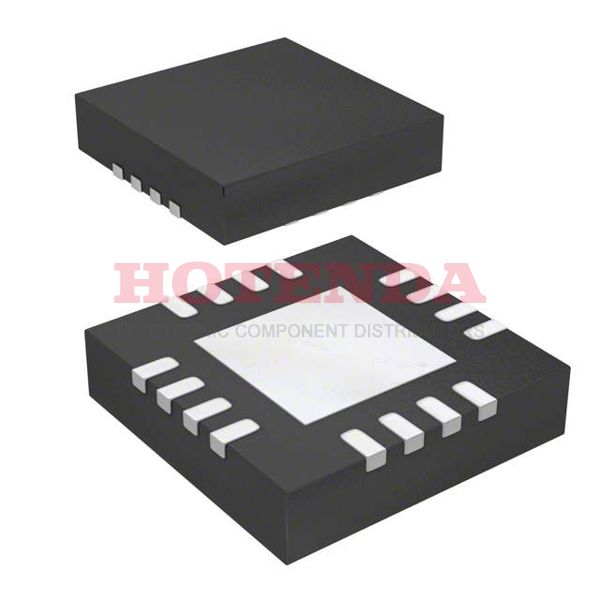

Package / Case	16-WQFN Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C TJ
Packaging	Tube
Series	Automotive, AEC-Q100
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Technology	BICMOS
Terminal Position	QUAD
Terminal Pitch	0.8mm
Base Part Number	MAX16938
Function	Step-Down
Number of Outputs	1
Voltage - Input (Max)	36V
Output Voltage	5V
Output Type	Adjustable (Fixed)
Voltage - Input (Min)	3.5V
Input Voltage-Nom	14V
Analog IC - Other Type	SWITCHING REGULATOR
Output Configuration	Positive
Current - Output	2.5A
Voltage - Output (Min/Fixed)	1V 5V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	220kHz~2.2MHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	No
Voltage - Output (Max)	10V
Height Seated (Max)	0.8mm
Length	5mm
Width	5mm
RoHS Status	ROHS3 Compliant

MAX16938ATERA/V+ Product Details

MAX16938ATERA/V+ Overview

Using the Tube package, this voltage regulator optimizes the performance of the voltage regulator 12v. During the development of this harley voltage regulator, 16 terminations were made. A SWITCHING REGULATOR type of analog IC is equipped with this regulator voltage, which is the type of analog IC that is used in it. In order to save space, this harley voltage regulator is available in the 16-WQFN Exposed Pad package. In this case, DC DC switching regulator has 1 outputs configured to it. ICs such as this voltage regulator are capable of generating Adjustable (Fixed) outputs through their output pins. This switching regulator is designed to fit the Surface Mount mounting system. As long as its operating temperature is -40°C~125°C TJ, dc to dc voltage regulator should perform well. A DC-DC switching regulator of this type operates at a switching frequency of 220kHz~2.2MHz. The voltage regulator can operate with a dc to dc voltage regulator's minimum input voltage of 3.5V. The adjusting voltage regulator's output voltage (Min/Fixed) is 1V 5V. This voltage regulator 12v features maximum design flexibility thanks to its 2.5A output current. As far as the voltage input is concerned, DC DC switching regulator can accept up to 36V. To meet the operation requirements, voltage regulator is designed to provide 14V as the nominal input voltage. In the particular voltage regulators, the MAX16938 family is represented. Voltage of voltage regulator can be delivered at 5V volts. DC DC switching regulator is able to operate in an easy way on the basis of the maximal output voltage of 10V. The switching DC-DC regulator belongs to the Automotive, AEC-Q100 family of electronic voltage regulator 12vs.
