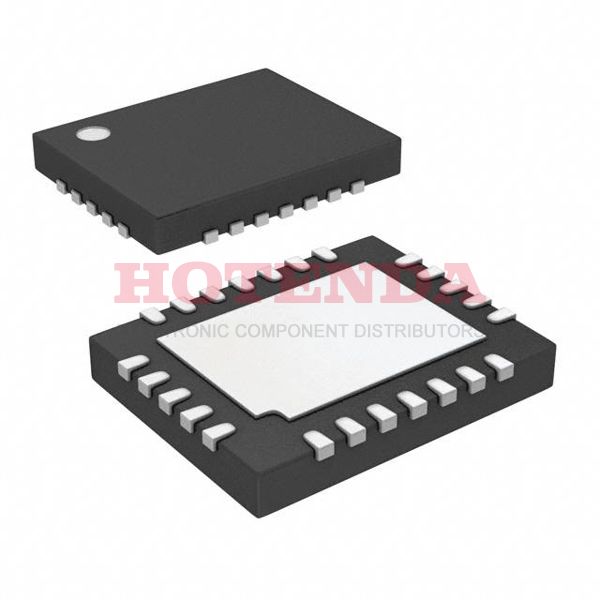

LTC3118EFE Overview
Using the Tube package, this voltage regulator optimizes the performance of the voltage regulator 12v. For space-saving purposes, this voltage regulator is available in the 24-WFQFN Exposed Pad package. The voltage regulator is configured with 1 outputs. There are output pins on this DC DC switching regulator that generate Adjustable output. The voltage regulator 12v fits the Surface Mount mounting hole. As long as its operating temperature is -40°C~125°C TJ, dc to dc voltage regulator should perform well. A DC-DC switching regulator such as this one switches at 1.2MHz. A dc to dc voltage regulator's minimum input voltage of 2.2V is required for this voltage regulator to operate. As shown in the table below, adjusting voltage regulator's output voltage (Min/Fixed) is equal to 2V. It features maximum design flexibility due to dc to dc voltage regulator's 2A output current. The maximum input voltage of this voltage regulator 12v is 18V.
LTC3118EFE Features
1 outputs
LTC3118EFE Applications
There are a lot of Linear Technology/Analog Devices LTC3118EFE Voltage Regulators applications.
- seismic instrument power circuits
- Scientific research
- Telecommunications equipment
- Elevator lighting
- Plate bending machines
- Lathes
- Printing equipment
- Gear/thread machining machines
- Die casting equipment
- Various CNC machine tools
