Name: MAX16993AGJB/VY+
Brand: Maxim Integrated
SKU: MAX16993AGJB/VY+
Availability: InStock

Technical Specifications

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	32-VFQFN Exposed Pad
Number of Pins	32
Operating Temperature	-40°C~125°C TJ
Packaging	Tube
Published	2015
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	32
ECCN Code	EAR99
Additional Feature	ALSO AVAILABLE VOUT=5V
Terminal Position	QUAD
Terminal Pitch	0.5mm
Base Part Number	MAX16993
Function	Step-Down
Number of Outputs	3
Output Voltage	3.95V
Output Type	Adjustable (Programmable)
Operating Supply Voltage	36V
Voltage - Input (Min)	3.5V
Input Voltage-Nom	14V
Analog IC - Other Type	DUAL SWITCHING CONTROLLER
Output Configuration	Positive
Current - Output	3A
Max Output Voltage	3.95V
Voltage - Output (Min/Fixed)	0.8V
Topology	Buck
Control Mode	CURRENT-MODE
Frequency - Switching	2.1MHz
Control Technique	PULSE WIDTH MODULATION
Synchronous Rectifier	Yes
Min Output Voltage	5V
Height Seated (Max)	0.9mm
Length	5mm
Width	5mm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant

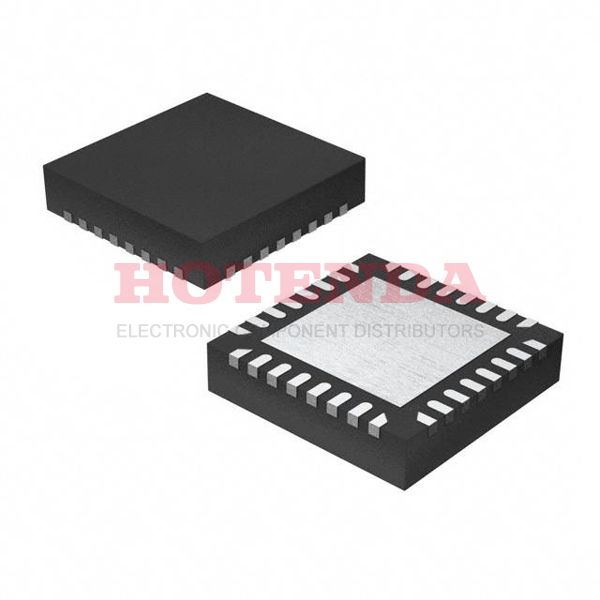

MAX16993AGJB/VY+ Product Details

MAX16993AGJB/VY+ Overview

optimized performance is achieved by utilizing the Tube package in this voltage regulator. Throughout this voltage regulator, there are 32 terminations. As this regulator voltage is equipped with an analog IC of the type DUAL SWITCHING CONTROLLER, it is a DUAL SWITCHING CONTROLLER-type voltage regulator. The harley voltage regulator is available as a 32-VFQFN Exposed Pad package to save space. 3 outputs have been configured in the voltage regulator 12v. Adjusting voltage regulator's output pins generate Adjustable (Programmable) output. A voltage regulator 12v such as this one fits the Surface Mount mounting bracket. In order for it to operate properly, dc to dc voltage regulator's operating temperature should be at -40°C~125°C TJ. A DC-DC switching regulator such as this one switches at 2.1MHz. Despite its low input voltage, this voltage regulator can operate. In this adjusting voltage regulator, the output voltage (Min/Fixed) equates to 0.8V. This voltage regulator 12v features maximum design flexibility thanks to its 3A output current. For operation, switching regulator requires a nominal input voltage of 14V. In the particular voltage regulators, the MAX16993 family is represented. A voltage of 3.95V volts can be generated by DC DC switching regulator. To operate the voltage regulator 12v, 32 pins are required. The output voltage of this voltage regulator 12v should at least be set at 5V volts at all times. A maximum voltage of 3.95V can be obtained from the regulator voltage. A harley voltage regulator operates with a 36V supply voltage. In addition to adding efficiency and stability to the harley voltage regulator, the ALSO AVAILABLE VOUT=5V feature brings even greater benefits.
