Name: LT3022IMSE#PBF
Brand: Linear Technology/Analog Devices
SKU: LT3022IMSE#PBF
Price: 8.83000 USD
Availability: InStock

new

LT3022IMSE#PBF

Manufacturer part number:LT3022IMSE#PBF

Manufacturer:Linear Technology/Analog Devices

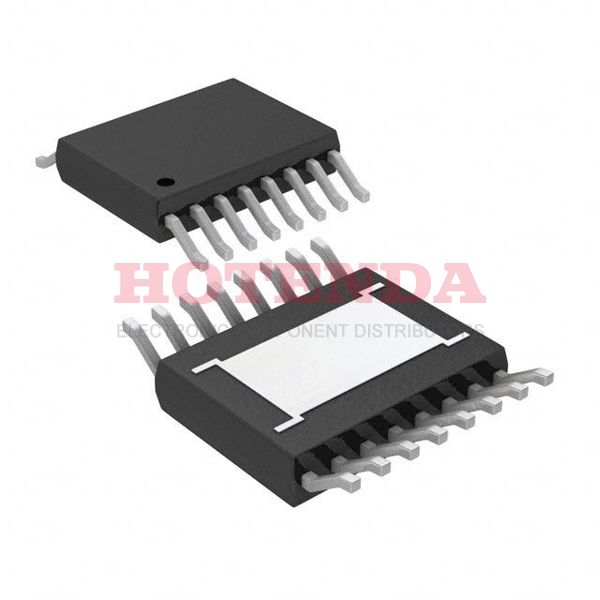

Description:Enable Adjustable 0.5mm LT3022 PMIC 16 16-TFSOP (0.118, 3.00mm Width) Exposed Pad

Case Package:SOT-23

Datasheet:LT3022IMSE#PBF Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Surface Mount
Package / Case	16-TFSOP (0.118, 3.00mm Width) Exposed Pad
Surface Mount	YES
Operating Temperature	-40°C~125°C
Packaging	Tube
Published	2012
JESD-609 Code	e3
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	16
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Terminal Position	DUAL
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Number of Functions	1
Terminal Pitch	0.5mm
Time@Peak Reflow Temperature-Max (s)	NOT SPECIFIED
Base Part Number	LT3022
Pin Count	16
Current - Supply (Max)	36mA
Number of Outputs	1
Qualification Status	Not Qualified
Voltage - Input (Max)	10V
Output Type	Adjustable
Output Configuration	Positive
Current - Output	1A
Control Features	Enable
Voltage - Output (Min/Fixed)	0.2V
Number of Regulators	1
Protection Features	Over Current, Over Temperature, Reverse Polarity
Current - Quiescent (Iq)	3.5mA
Voltage Dropout (Max)	0.285V @ 1A
PSRR	70dB (120Hz)
Dropout Voltage1-Nom	0.145V
Output Voltage1-Min	0.2V
Voltage - Output (Max)	9.5V
Load Regulation-Max(%)	0.5%
Length	4.039mm
Width	3mm
RoHS Status	ROHS3 Compliant

LT3022IMSE#PBF Product Details

LT3022IMSE#PBF Overview

This Voltage Regulator IC comes inTube packaging. This battery regulator is contained in a 16-TFSOP (0.118, 3.00mm Width) Exposed Pad package. There are 16 terminations on the gadget. The IC chip's output type is Adjustable. This electronic component implements 1 regulators. The Linear Voltage Regulator's mounting type is Surface Mount. The IC Regulator is set to operate at -40°C~125°C degrees. This regulator's output function is configured to be Positive. Its current output stands at 1A. IC voltage regulator has a sum of 16 pins. To ensure prompt, sufficient performance, this part features 1 outputs in total. FYI, the basic part number for this IC regulator is LT3022.
