TLV71125125DSET Overview

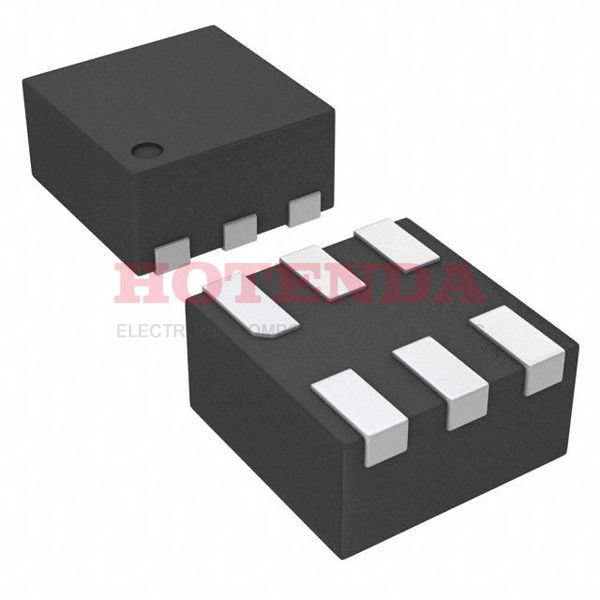

Tape & Reel (TR) cases are used for delivery. The Liner regulator IC is packaged in 6-WFDFN case. On the Linear IC itself, there are 6 terminations. Fixed is the output type of the Voltage Regulator IC. As part of this electrical component, 2 regulators are implemented. Variations are made to the Surface Mount operating temperature range by the Voltage Regulator IC. Default settings are set to -40°C~125°C TJ degrees. There is a Positive configured as the output function for this IC regulator. There are a total of 6 pins on this board. There are 2 outputs total on this voltage regulator IC in order to ensure that prompt and sufficient performance is achieved. There is a dropout voltage of 10 volts on this IC regulator. Chips have 6 pins. For your information, the basic part number for this regulator IC is TLV71125125. In this case, we have a typical Other Regulators component. TR is the way in which the voltage regulator IC is packed. In order to meet the operation requirements, its maximal output current reaches 200mA. It operates in the 30μA Quiescent Current state.
TLV71125125DSET Features
175mV dropout voltage
Other Regulators subtageroy
TR method of packing
TLV71125125DSET Applications
There are a lot of Texas Instruments
TLV71125125DSET Linear Voltage Regulators applications.
- Battery-powered device
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
