TPS74201RGWT Overview

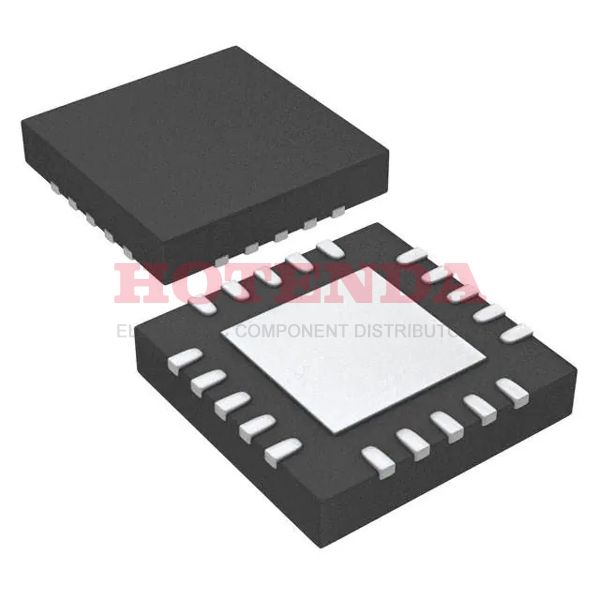

A Tape & Reel (TR) case is used to deliver the Voltage Regulated IC. A 20-VQFN Exposed Pad case is used for packaging. As you can see, the IC chip has 20 terminations. Regulator IC chip's output type is Adjustable. The electronic part implements 1 regulators in total. In this Regulator IC chip, the operating temperature of Surface Mount varies. -40°C~125°C degrees is the operating temperature of the Voltage Regulator IC. There is one output function configured for this voltage regulator IC, and that is Positive. This chip has a total of 20 pins, which are arranged in a rectangular shape. It has 1 outputs to ensure that the performance of this regulator is prompt and sufficient. The dropout voltage of the regulator IC is 10 volts. 20 pins are on the chip. For your information, this regulator's basic part number is TPS74201. There is a way of packing the regulator that is called TR. To meet operation requirements, the voltage regulator IC has a maximum output current of 1.5A. It operates in the 3mA Quiescent Current state.
TPS74201RGWT Features
55mV dropout voltage
TR method of packing
TPS74201RGWT Applications
There are a lot of Texas Instruments
TPS74201RGWT Linear Voltage Regulators applications.
- Communication device
- Personal communication device
- Portable telephone
- Electronic notebook
- Camera
- Video equipment
- CPU power supply
- Switching regulator
- Multiple-power supply system
- Digital audio player
