LFEC1E-3TN144C

LFEC1E-3TN144C

LFEC1E-3TN144C

Lattice Semiconductor Corporation

1.2V V 1.6mm mm 3kB B FPGAs EC Series 340MHz MHz 144-LQFP 0.5mm mm 144

SOT-23

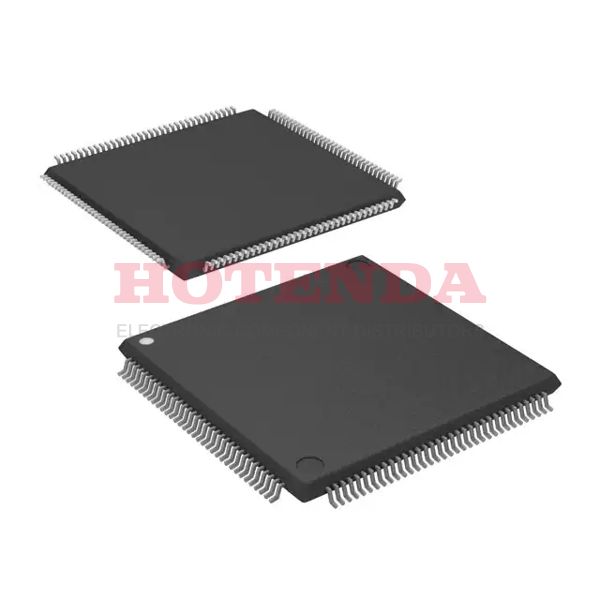

LFEC1E-3TN144C Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 144-LQFP
Number of Pins 144
Operating Temperature0°C~85°C TJ
PackagingTray
Published 2000
Series EC
JESD-609 Code e3
Pbfree Code yes
Part StatusObsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 144
ECCN Code EAR99
Terminal Finish Matte Tin (Sn)
HTS Code8542.39.00.01
Subcategory Field Programmable Gate Arrays
Voltage - Supply 1.14V~1.26V
Terminal Position QUAD
Terminal FormGULL WING
Peak Reflow Temperature (Cel) 260
Supply Voltage 1.2V
Terminal Pitch0.5mm
Reach Compliance Code unknown
Frequency 340MHz
[email protected] Reflow Temperature-Max (s) 40
Base Part Number LFEC1
Pin Count144
Number of Outputs 97
Qualification StatusNot Qualified
Operating Supply Voltage1.2V
Power Supplies1.21.2/3.33.3V
Memory Size3kB
Number of I/O 97
RAM Size 2.3kB
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 1500
Total RAM Bits 18432
Number of Logic Blocks (LABs) 192
Combinatorial Delay of a CLB-Max 0.56 ns
Number of CLBs 192
Height Seated (Max) 1.6mm
Length 20mm
Width 20mm
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:2790 items

LFEC1E-3TN144C Product Details

LFEC1E-3TN144C Overview


This package is included in the 144-LQFP package and is available for purchase. An FPGA of this type is made up of FIELD PROGRAMMABLE GATE ARRAY gates. This device features 97 I/Os in order to transfer data in a more efficient manner. The basic building blocks of logic contain 1500 logic elements/cells. Fpga chips is powered from a supply voltage of 1.2V. This FPGA part belongs to the family of Field Programmable Gate Arrays. With a Surface Mount connector, this FPGA module can be attached to the development board. Fpga chips operates wFpga chipsh a supply voltage of 1.14V~1.26V. The EC Series is one of the types of FPGAs that belong to this type. During the operation of the system, the operating temperature should remain within the range of 0°C~85°C TJ. There are 97 outputs incorporated in this device. Using the Tray layout, this FPGA model can be contained in a very small amount of space. The total number of terminations is 144. As far as the RAM bits are concerned, this device offers you a total of 18432. LFEC1 is the base part number that can be used to identify related parts. The RAM si2.3kBe of this FPGA module reaches 2.3kB so as to guarantee the normal operation of the program during operation. In this case, 144 pins are used in the design. Providing that this FPGA is mounted in Surface Mount, it will be able to perform according to its specifications in a flawless manner. Design engineers can fully take advantage of its flexibility when operating at 1.2V supply voltage. Power is provided by a 1.21.2/3.33.3V battery that is included with the device. With a total of 144 pins, it is equipped with a high level of security. There are 192 logic blocks (LABs) that make up the system's basic building block. A memory of 3kB is embedded in this FPGA module for storing data and programs. An architecture consists of 192 CLBs. To achieve high efficiency, it runs at a frequency of 340MHz.

LFEC1E-3TN144C Features


97 I/Os
Up to 18432 RAM bits
144 LABs/CLBs
192 logic blocks (LABs)
Operating from a frequency of 340MHz

LFEC1E-3TN144C Applications


There are a lot of Lattice Semiconductor Corporation LFEC1E-3TN144C FPGAs applications.

  • Defense Applications
  • Filtering and communication encoding
  • Artificial intelligence (AI)
  • Computer hardware emulation
  • Industrial,Medical and Scientific Instruments
  • Space Applications
  • Automotive
  • Industrial Ethernet
  • Cryptography
  • Secure Communication
