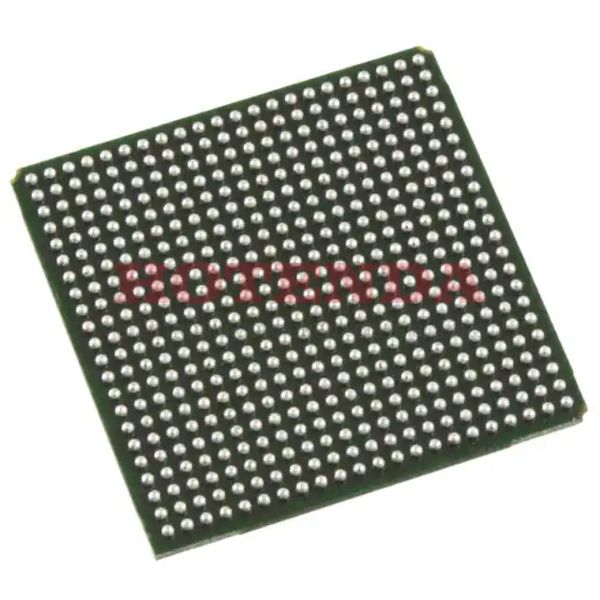

LFE2-12SE-7F484C Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 484-BBGA
Number of Pins 484
Operating Temperature0°C~85°C TJ
PackagingTray
Published 2012
Series ECP2
JESD-609 Code e0
Pbfree Code no
Part StatusObsolete
Moisture Sensitivity Level (MSL) 3 (168 Hours)
Number of Terminations 484
ECCN Code EAR99
Terminal Finish Tin/Lead (Sn63Pb37)
HTS Code8542.39.00.01
Subcategory Field Programmable Gate Arrays
Voltage - Supply 1.14V~1.26V
Terminal Position BOTTOM
Terminal FormBALL
Peak Reflow Temperature (Cel) 225
Supply Voltage 1.2V
Terminal Pitch1mm
Reach Compliance Code not_compliant
[email protected] Reflow Temperature-Max (s) 30
Base Part Number LFE2-12
Pin Count484
Number of Outputs 297
Qualification StatusNot Qualified
Operating Supply Voltage1.2V
Memory Size30.6kB
Number of I/O 297
RAM Size 27.6kB
Programmable Logic TypeFIELD PROGRAMMABLE GATE ARRAY
Number of Logic Elements/Cells 12000
Total RAM Bits 226304
Max Frequency 320MHz
Number of LABs/CLBs 1500
Combinatorial Delay of a CLB-Max 0.304 ns
Height Seated (Max) 2.6mm
Length 23mm
Width 23mm
RoHS StatusNon-RoHS Compliant
Lead Free Lead Free
In-Stock:2529 items

LFE2-12SE-7F484C Product Details

LFE2-12SE-7F484C Overview


There is a 484-BBGA package that includes this component. An FPGA of this type is made up of FIELD PROGRAMMABLE GATE ARRAY gates. Fpga chips is programmed wFpga chipsh 297 I/Os for transferring data in a more coherent manner. There are 12000 logic elements/cells to form a fundamental building block. An electrical supply voltage of 1.2V powers it. FPGA parts like this belong to the Field Programmable Gate Arrays family. This FPGA module can be attached to the development board with a Surface Mount. A supply voltage of 1.14V~1.26V is needed in order for fpga chips to operate. There are many types of FPGAs in the ECP2 series, this is one of them. In order to ensure a safe and efficient operation, it is important to maintain a temperature within 0°C~85°C TJ at all times. This device is equipped with 297 separate outputs, which makes it a very versatile device. Using the Tray layout, this FPGA model can be contained in a very small amount of space. The total number of terminations is 484. The RAM bits that this device offer is 226304. Its base part number LFE2-12 can be used to find parts that are related to it. A significant amount of RAM is allocated to this FPGA module to ensure that the program can operate normally. In this case, there are 484 pins on the board. 1500 LABs and CLBs are built into this FPGA. Having stated that, if this FPGA is mounted in Surface Mount, then it may be able to perform fantastically according to its specifications. Its flexibility can be fully utilized when operating with a 1.2V supply voltage. A total of 484 pins are included in this device. Data and programs can be stored in this FPGA module's 30.6kB memory. It is possible to achieve a speed of up to 320MHz with this FPGA.

LFE2-12SE-7F484C Features


297 I/Os
Up to 226304 RAM bits
484 LABs/CLBs

LFE2-12SE-7F484C Applications


There are a lot of Lattice Semiconductor Corporation LFE2-12SE-7F484C FPGAs applications.

  • Wired Communications
  • ADAS
  • Camera time adjustments
  • Medical Electronics
  • Ecosystem
  • Aerospace and Defense
  • Development Boards and Shields for Microcontrollers
  • Computer hardware emulation
  • Integrating multiple SPLDs
  • Software-defined radio
