R82EC2680AA60J

  • R82EC2680AA60J - R82EC2680AA60J datasheet pdf and Film Capacitors product details from KEMET stock available on our website
  • R82EC2680AA60J - R82EC2680AA60J datasheet pdf and Film Capacitors product details from KEMET stock available on our website

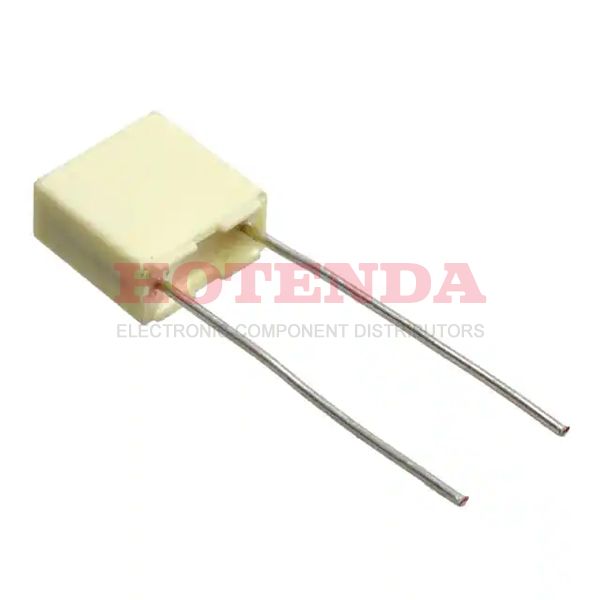

R82EC2680AA60J

R82EC2680AA60J

KEMET

R82EC2680AA60J datasheet pdf and Film Capacitors product details from KEMET stock available on our website

SOT-23

R82EC2680AA60J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 29 Weeks
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature-55°C~105°C
PackagingBulk
Published 2008
Series R82
Size / Dimension 0.283Lx0.098W 7.20mmx2.50mm
Tolerance ±5%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Type General Purpose
Terminal Finish Tin (Sn)
Applications Automotive
HTS Code8532.25.00.80
Capacitance 0.068μF
Voltage - Rated DC 100V
Depth 2.5mm
Voltage - Rated AC 63V
Lead Pitch 5mm
Dielectric PET
Lead Spacing0.197 5.00mm
Insulation Resistance30Ohm
Lead Diameter 500 μm
Size Code 2810
Voltage 100V
Dissipation Factor80 %
Height 6.5mm
Height Seated (Max) 0.260 6.60mm
Length 7.2mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:26389 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.146293$0.146293
10$0.138012$1.38012
100$0.130200$13.02
500$0.122830$61.415
1000$0.115878$115.878

R82EC2680AA60J Product Details

R82EC2680AA60J Overview


There is 30Ohm insulation resistance from the device.There is 0.197 5.00mm lead spacing on this electrical device.Devices with a -55°C~105°C temperature capability can be operated.

R82EC2680AA60J Features


30Ohm insulation resistance

R82EC2680AA60J Applications


There are a lot of KEMET R82EC2680AA60J applications of film capacitors.

  • RFI for automotive
  • Compact fluorescent lamps (CFL)
  • Audio/video equipment
  • TV and monitor sets
  • Bypassing
  • VCO's
  • Snubbering
  • Lighting
  • Switch mode power supplies
  • Industrial and automotive inverters
