ECH-U1224GCV

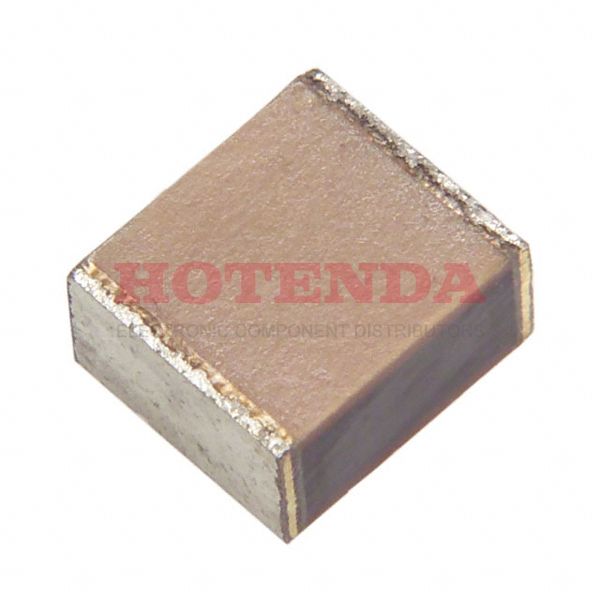

  • ECH-U1224GCV - ECH-U(C) 0.22μF Film Capacitor ±2% 2825 (7163 Metric) Solder Pads 100V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked Surface Mount
  • ECH-U1224GCV - ECH-U(C) 0.22μF Film Capacitor ±2% 2825 (7163 Metric) Solder Pads 100V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked Surface Mount

ECH-U1224GCV

ECH-U1224GCV

Panasonic Electronic Components

ECH-U(C) 0.22μF Film Capacitor ±2% 2825 (7163 Metric) Solder Pads 100V-DC Polyphenylene Sulfide (PPS), Metallized - Stacked Surface Mount

SOT-23

ECH-U1224GCV Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 8 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2825 (7163 Metric)
Terminal Shape WRAPAROUND
Dielectric MaterialPolyphenylene Sulfide (PPS), Metallized - Stacked
Operating Temperature-55°C~105°C
PackagingTape & Reel (TR)
Published 2008
Series ECH-U(C)
Size / Dimension 0.280Lx0.248W 7.10mmx6.30mm
Tolerance ±2%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
HTS Code8532.25.00.55
Capacitance 0.22μF
Voltage - Rated DC 100V
Packing Method TR
Depth 6.3mm
Case Code (Metric) 7163
Case Code (Imperial) 2825
Capacitor Type FILM CAPACITOR
Dielectric PPS
Height 4.8mm
Height Seated (Max) 0.201 5.10mm
Length 7.1mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
In-Stock:2467 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$3.313421$3.313421
10$3.125869$31.25869
100$2.948933$294.8933
500$2.782012$1391.006
1000$2.624540$2624.54

ECH-U1224GCV Product Details

ECH-U1224GCV Overview


In a temperature range of -55°C~105°C, the device can be operated.

ECH-U1224GCV Features



ECH-U1224GCV Applications


There are a lot of Panasonic Electronic Components ECH-U1224GCV applications of film capacitors.

  • VCO's
  • Blocking
  • Industrial and automotive inverters
  • RF Modules
  • Electronic ballasts
  • Filtering
  • Bypassing
  • RFI for automotive
  • Matching networks
  • Switch mode power supplies
