R82EC1220AA50K

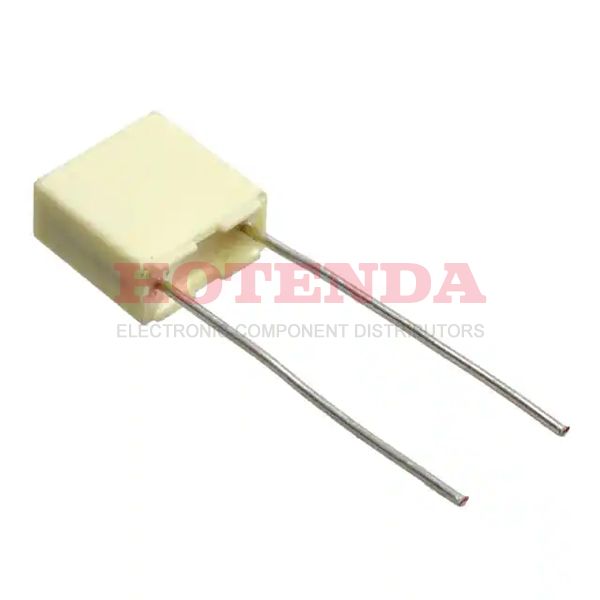

  • R82EC1220AA50K - R82 2200pF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Through Hole
  • R82EC1220AA50K - R82 2200pF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Through Hole

R82EC1220AA50K

R82EC1220AA50K

KEMET

R82 2200pF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Through Hole

SOT-23

R82EC1220AA50K Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 22 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature-55°C~105°C
PackagingBulk
Published 2014
Series R82
Size / Dimension 0.283Lx0.098W 7.20mmx2.50mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Type General Purpose
Terminal Finish Tin (Sn)
Applications Automotive
Additional FeatureRATED AC VOLTAGE (V): 63
Capacitance 2200pF
Voltage - Rated DC 100V
Depth 2.5mm
Voltage - Rated AC 63V
Lead Pitch 5mm
Dielectric PET
Lead Spacing0.197 5.00mm
Lead Diameter 500 μm
Size Code 2810
Dissipation Factor2.5 %
Height 6.5mm
Height Seated (Max) 0.260 6.60mm
Length 7.2mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:30850 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.232138$0.232138
10$0.218998$2.18998
100$0.206602$20.6602
500$0.194907$97.4535
1000$0.183875$183.875

R82EC1220AA50K Product Details

R82EC1220AA50K Overview


A 0.197 5.00mm lead spacing is used in this electrical device.-55°C~105°C is the maximum temperature at which the device can operate.

R82EC1220AA50K Features



R82EC1220AA50K Applications


There are a lot of KEMET R82EC1220AA50K applications of film capacitors.

  • Blocking
  • RFI for automotive
  • Switch-mode power supplies
  • Coupling, decoupling
  • Lighting
  • Compact fluorescent lamps (CFL)
  • Snubbering
  • Global positioning systems
  • Test and measuring equipment
  • Filtering
