ECW-U2683KC9

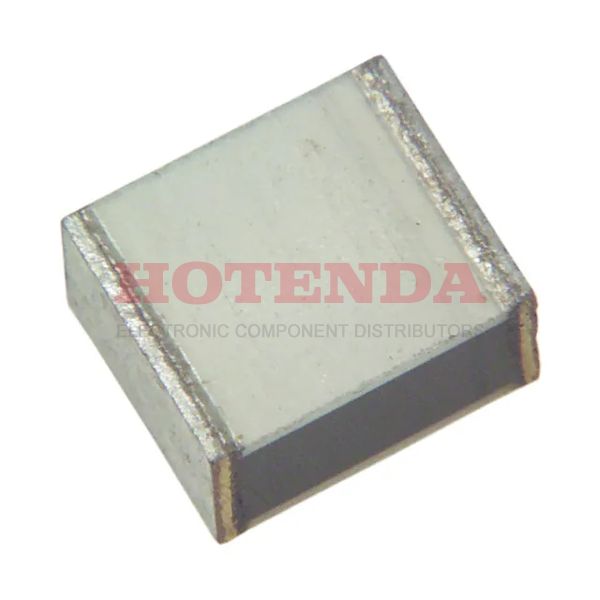

  • ECW-U2683KC9 - ECW-U(C) 0.068μF Film Capacitor ±10% 2416 (6041 Metric) Solder Pads 250V-DC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount
  • ECW-U2683KC9 - ECW-U(C) 0.068μF Film Capacitor ±10% 2416 (6041 Metric) Solder Pads 250V-DC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount

ECW-U2683KC9

ECW-U2683KC9

Panasonic Electronic Components

ECW-U(C) 0.068μF Film Capacitor ±10% 2416 (6041 Metric) Solder Pads 250V-DC Polyester, Polyethylene Naphthalate (PEN), Metallized - Stacked Surface Mount

SOT-23

ECW-U2683KC9 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 10 Weeks
Mount Surface Mount
Mounting Type Surface Mount
Package / Case 2416 (6041 Metric)
Terminal Shape WRAPAROUND
Dielectric MaterialPolyester, Polyethylene Naphthalate (PEN), Metallized - Stacked
Operating Temperature-55°C~125°C
PackagingTape & Reel (TR)
Published 2011
Series ECW-U(C)
Size / Dimension 0.236Lx0.161W 6.00mmx4.10mm
Tolerance ±10%
JESD-609 Code e1
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 4 (72 Hours)
Number of Terminations 2
Termination Solder Pads
ECCN Code EAR99
Terminal Finish Tin/Silver/Copper (Sn/Ag/Cu)
Applications General Purpose
HTS Code8532.25.00.45
Capacitance 0.068μF
Voltage - Rated DC 250V
Packing Method TR
Depth 4.1mm
Case Code (Metric) 6041
Case Code (Imperial) 2416
Capacitor Type FILM CAPACITOR
Height 3.2mm
Height Seated (Max) 0.134 3.40mm
Length 6mm
Radiation HardeningNo
RoHS StatusRoHS Compliant
In-Stock:4440 items

Pricing & Ordering

QuantityUnit PriceExt. Price

ECW-U2683KC9 Product Details

ECW-U2683KC9 Overview


Temperatures of -55°C~125°C are suitable for operating the device.

ECW-U2683KC9 Features



ECW-U2683KC9 Applications


There are a lot of Panasonic Electronic Components ECW-U2683KC9 applications of film capacitors.

  • Switch-mode power supplies
  • RFI for automotive
  • Compact fluorescent lamps (CFL)
  • Electronic ballasts
  • VCO's
  • Matching networks
  • Mobile communications
  • Coupling, decoupling
  • Audio/video equipment
  • Blocking
