ECW-FG2J225J

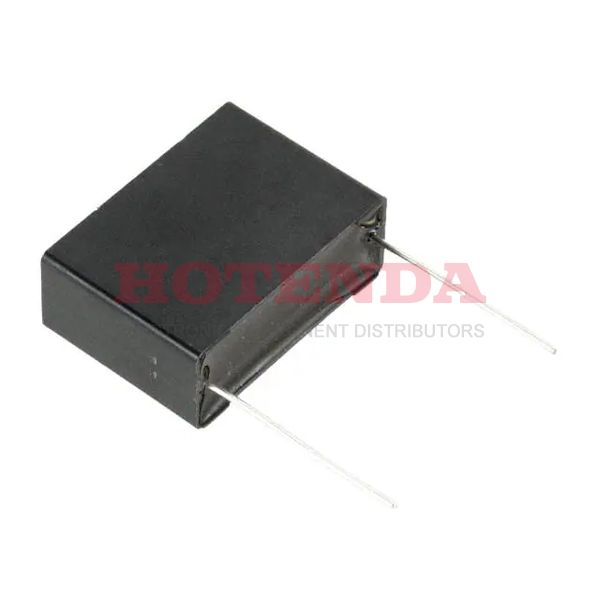

  • ECW-FG2J225J - ECWFG 2.2μF Film Capacitor ±5% Radial PC Pins 630V-DC Polypropylene (PP), Metallized
  • ECW-FG2J225J - ECWFG 2.2μF Film Capacitor ±5% Radial PC Pins 630V-DC Polypropylene (PP), Metallized

ECW-FG2J225J

ECW-FG2J225J

Panasonic Electronic Components

ECWFG 2.2μF Film Capacitor ±5% Radial PC Pins 630V-DC Polypropylene (PP), Metallized

SOT-23

ECW-FG2J225J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 13 Weeks
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~110°C
PackagingBulk
Series ECWFG
Size / Dimension 1.240Lx0.472W 31.50mmx12.00mm
Tolerance ±5%
Feature High Temperature
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Termination PC Pins
Applications Automotive; High Frequency, Switching
Capacitance 2.2μF
Voltage - Rated DC 630V
Lead Spacing1.083 27.50mm
Height Seated (Max) 0.984 25.00mm
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:4497 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.973369$1.973369
10$1.861669$18.61669
100$1.756291$175.6291
500$1.656878$828.439
1000$1.563093$1563.093

ECW-FG2J225J Product Details

ECW-FG2J225J Overview


1.083 27.50mm is the lead spacing of this electrical device.Temperatures of -40°C~110°C allow the device to operate.

ECW-FG2J225J Features



ECW-FG2J225J Applications


There are a lot of Panasonic Electronic Components ECW-FG2J225J applications of film capacitors.

  • Switch-mode power supplies
  • Battery management system
  • Audio/video equipment
  • Bypassing
  • Electronic ballasts
  • Blocking
  • Lighting
  • Industrial and automotive inverters
  • Global positioning systems
  • VCO's
