R60EI4220AA30J

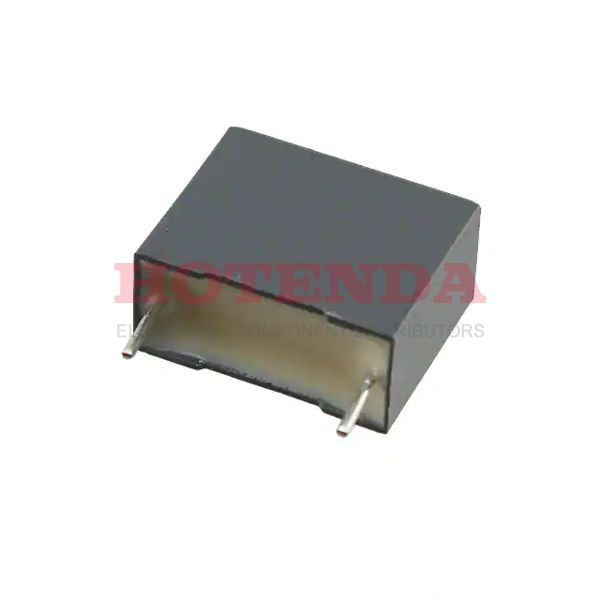

  • R60EI4220AA30J - R60 2.2μF Film Capacitor ±5% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized Through Hole
  • R60EI4220AA30J - R60 2.2μF Film Capacitor ±5% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized Through Hole

R60EI4220AA30J

R60EI4220AA30J

KEMET

R60 2.2μF Film Capacitor ±5% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized Through Hole

SOT-23

R60EI4220AA30J Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Dielectric MaterialPolyester, Polyethylene Terephthalate (PET), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Published 2012
Series R60
Size / Dimension 0.709Lx0.335W 18.00mmx8.50mm
Tolerance ±5%
JESD-609 Code e3
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Type General Purpose
Terminal Finish Tin (Sn)
Applications Automotive
HTS Code8532.25.00.80
Capacitance 2.2μF
Voltage - Rated DC 100V
Depth 8.5mm
Voltage - Rated AC 63V
Lead Pitch 15mm
Dielectric PET
Lead Spacing0.591 15.00mm
Lead Diameter 800 μm
Size Code 7133
Voltage 100V
Height 14.5mm
Height Seated (Max) 0.575 14.60mm
Length 18mm
Radiation HardeningNo
RoHS StatusROHS3 Compliant
Ratings AEC-Q200
In-Stock:3875 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$1.499888$1.499888
10$1.414989$14.14989
100$1.334896$133.4896
500$1.259335$629.6675
1000$1.188052$1188.052

R60EI4220AA30J Product Details

R60EI4220AA30J Overview


Its lead spacing is 0.591 15.00mm.It is capable of operating at -55°C~105°C degrees Celsius.

R60EI4220AA30J Features



R60EI4220AA30J Applications


There are a lot of KEMET R60EI4220AA30J applications of film capacitors.

  • Industrial and automotive inverters
  • Global positioning systems
  • Snubbering
  • Test and measuring equipment
  • Switch mode power supplies
  • Lighting
  • Blocking
  • Filters
  • Battery management system
  • Matching networks
