WMF1P22K-F

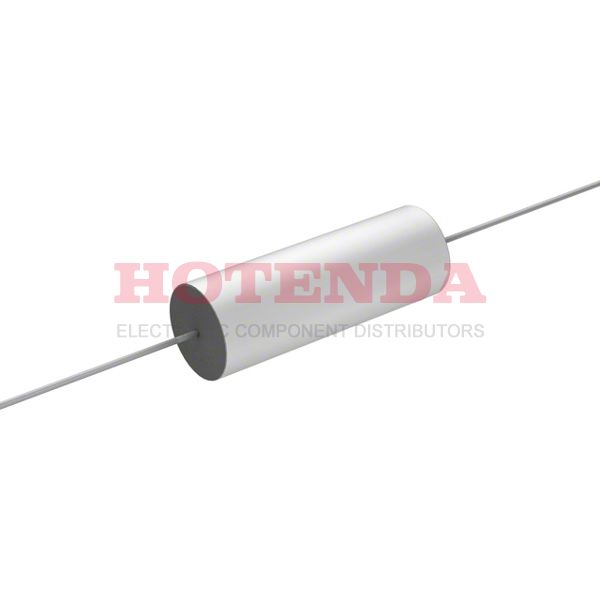

  • WMF1P22K-F - WMF 0.22μF Film Capacitor ±10% Axial PC Pins 100V-DC 65V-AC Polyester Through Hole
  • WMF1P22K-F - WMF 0.22μF Film Capacitor ±10% Axial PC Pins 100V-DC 65V-AC Polyester Through Hole

WMF1P22K-F

WMF1P22K-F

Cornell Dubilier Electronics (CDE)

WMF 0.22μF Film Capacitor ±10% Axial PC Pins 100V-DC 65V-AC Polyester Through Hole

SOT-23

WMF1P22K-F Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 20 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Axial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolyester
Operating Temperature-55°C~125°C
PackagingBulk
Published 2013
Series WMF
Size / Dimension 0.374Diax1.063L 9.50mmx27.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Additional FeatureRATED AC VOLTAGE (V): 65
Capacitance 0.22μF
Voltage - Rated DC 100V
Voltage - Rated AC 65V
Capacitor Type FILM CAPACITOR
Dielectric PET
Lead Diameter 600 μm
Life (Hours) 500 hours
Diameter 9.5mm
REACH SVHC No SVHC
RoHS StatusROHS3 Compliant
In-Stock:2118 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$2.807965$2.807965
10$2.649023$26.49023
100$2.499079$249.9079
500$2.357622$1178.811
1000$2.224171$2224.171

WMF1P22K-F Product Details

WMF1P22K-F Overview


A temperature of -55°C~125°C is suitable for operation of the device.

WMF1P22K-F Features




WMF1P22K-F Applications


There are a lot of Cornell Dubilier Electronics (CDE)
WMF1P22K-F applications of film capacitors.


  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
