Name: B32522C1335K000
Brand: TDK Electronics Inc.
SKU: B32522C1335K000
Price: 1.82000 USD
Availability: InStock

new-10%

B32522C1335K000

Manufacturer part number:B32522C1335K000

Manufacturer:TDK Electronics Inc.

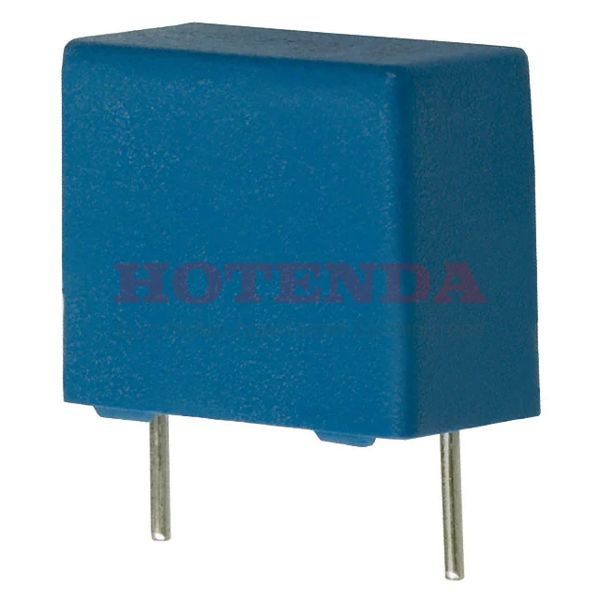

Description:B32522 3.3μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked

Case Package:SOT-23

Datasheet:B32522C1335K000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	24 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked
Operating Temperature	-55°C~125°C
Packaging	Bulk
Series	B32522
Size / Dimension	0.709Lx0.335W 18.00mmx8.50mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	Automotive; EMI, RFI Suppression
HTS Code	8532.25.00.70
Capacitance	3.3μF
Voltage - Rated DC	100V
Terminal Pitch	15mm
Reference Standard	AEC-Q200
Voltage - Rated AC	63V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.591 15.00mm
Rated (DC) Voltage (URdc)	100V
Rated (AC) Voltage (URac)	63V
Custom Capabilities	Special Lead Length Available On Request
Height Seated (Max)	0.571 14.50mm
Length	18mm
Width	8.5mm
RoHS Status	ROHS3 Compliant

B32522C1335K000 Product Details

B32522C1335K000 Overview

For systems to operate, a rated (DC) voltage (URdc) of 100V must be applied internally.Its lead spacing is 0.591 15.00mm.Powering systems requires an internal rated (AC) voltage (URac) of 63V.It is capable of operating at -55°C~125°C degrees Celsius.
