PHE426KK5330JR05

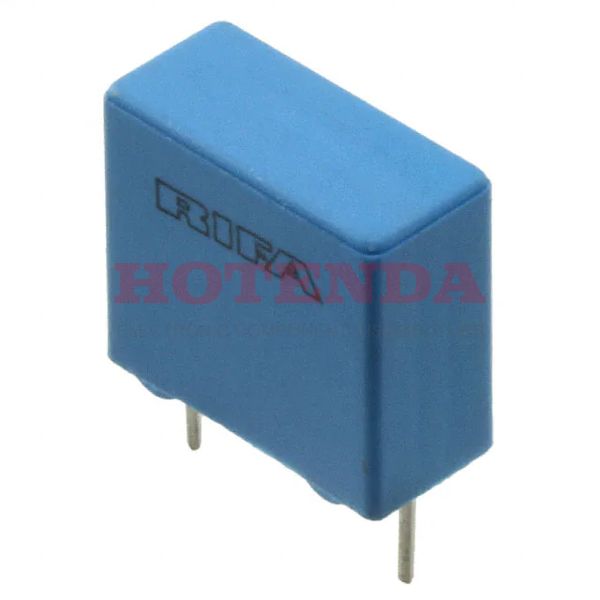

  • PHE426KK5330JR05 - PHE426 0.033μF Film Capacitor ±5% Radial PC Pins 400V-DC 220V-AC Polypropylene (PP), Metallized
  • PHE426KK5330JR05 - PHE426 0.033μF Film Capacitor ±5% Radial PC Pins 400V-DC 220V-AC Polypropylene (PP), Metallized

PHE426KK5330JR05

PHE426KK5330JR05

KEMET

PHE426 0.033μF Film Capacitor ±5% Radial PC Pins 400V-DC 220V-AC Polypropylene (PP), Metallized

SOT-23

PHE426KK5330JR05 Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 21 Weeks
Mounting Type Through Hole
Package / Case Radial
Surface MountNO
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-55°C~105°C
PackagingBulk
Series PHE426
Size / Dimension 0.394Lx0.197W 10.00mmx5.00mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications DC Link, DC Filtering; High Frequency, Switching; High Pulse, DV/DT
Capacitance 0.033μF
Voltage - Rated DC 400V
Voltage - Rated AC 220V
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Dielectric PP
Lead Spacing0.295 7.50mm
Lead Diameter 600 μm
Lead/Base Style Straight
Height 11mm
Height Seated (Max) 0.433 11.00mm
Length 10mm
RoHS StatusRoHS Compliant
In-Stock:36439 items

Pricing & Ordering

QuantityUnit PriceExt. Price
1$0.535177$0.535177
10$0.504884$5.04884
100$0.476306$47.6306
500$0.449345$224.6725
1000$0.423911$423.911

PHE426KK5330JR05 Product Details

PHE426KK5330JR05 Overview


There is 0.295 7.50mm lead spacing on this electrical device.-55°C~105°C is the maximum temperature at which the device can operate.

PHE426KK5330JR05 Features




PHE426KK5330JR05 Applications


There are a lot of KEMET
PHE426KK5330JR05 applications of film capacitors.


  • Coupling, decoupling
  • Bypassing
  • RFI for automotive
  • Industrial and automotive inverters
  • Battery management system
  • Test and measuring equipment
  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
