Name: B32653A2472J289
Brand: TDK Electronics Inc.
SKU: B32653A2472J289
Price: 0.52000 USD
Availability: InStock

new-10%

B32653A2472J289

Manufacturer part number:B32653A2472J289

Manufacturer:TDK Electronics Inc.

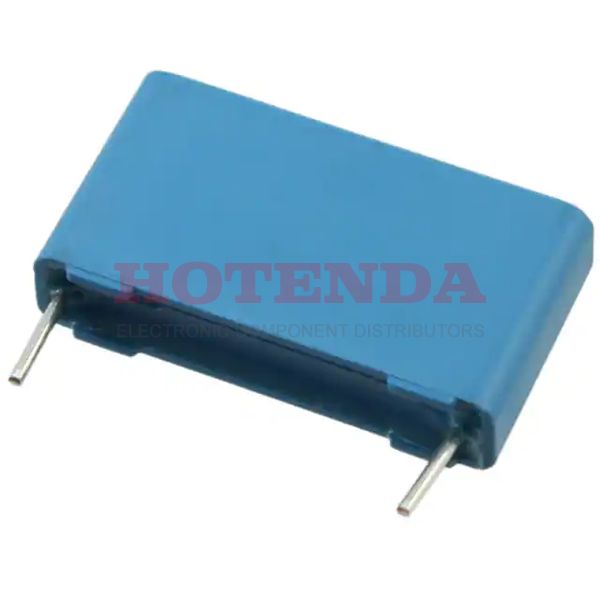

Description:B32653 4700pF Film Capacitor ±5% Radial PC Pins 2000V 2kV-DC 700V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32653A2472J289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~100°C
Packaging	Tape & Box (TB)
Series	B32653
Size / Dimension	1.043Lx0.236W 26.50mmx6.00mm
Tolerance	±5%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	DC Link, DC Filtering; High Pulse, DV/DT
Additional Feature	RATED AC VOLTAGE (V): 700
HTS Code	8532.25.00.70
Capacitance	4700pF
Voltage - Rated DC	2000V 2kV
Packing Method	AMMO PACK
Terminal Pitch	22.5mm
Reach Compliance Code	not_compliant
Voltage - Rated AC	700V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.886 22.50mm
Rated (DC) Voltage (URdc)	2000V
Rated (AC) Voltage (URac)	700V
Height Seated (Max)	0.591 15.00mm
Length	26.5mm
Width	6mm
RoHS Status	ROHS3 Compliant

B32653A2472J289 Product Details

B32653A2472J289 Overview

It is essential that systems function with a rated (DC) voltage (URdc) of 2000V.Electrical devices with 0.886 22.50mm lead spacing are used in this application.A 700V volt rated (AC) voltage is required to power systems.A temperature of -55°C~100°C is suitable for operation of the device.
