Name: B32673Z6684K000
Brand: TDK Electronics Inc.
SKU: B32673Z6684K000
Price: 0.62000 USD
Availability: InStock

new-10%

B32673Z6684K000

Manufacturer part number:B32673Z6684K000

Manufacturer:TDK Electronics Inc.

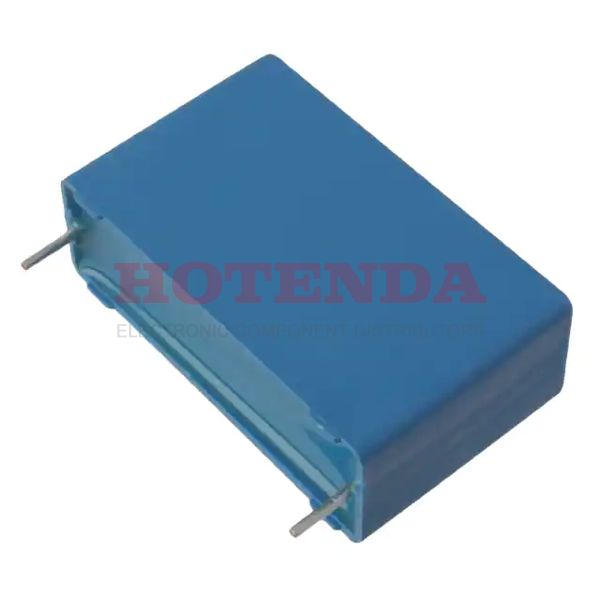

Description:B32673Z 0.68μF Film Capacitor ±10% Radial PC Pins 630V-DC 310V-AC Polypropylene (PP), Metallized

Case Package:SOT-23

Datasheet:B32673Z6684K000 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polypropylene (PP), Metallized
Operating Temperature	-55°C~110°C
Packaging	Bulk
Series	B32673Z
Size / Dimension	1.043Lx0.413W 26.50mmx10.50mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Additional Feature	RATED AC VOLTAGE (V): 310
HTS Code	8532.25.00.70
Capacitance	0.68μF
Voltage - Rated DC	630V
Terminal Pitch	22.5mm
Voltage - Rated AC	310V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.886 22.50mm
Rated (DC) Voltage (URdc)	630V
Rated (AC) Voltage (URac)	310V
Height Seated (Max)	0.728 18.50mm
Length	26.5mm
Width	10.5mm
RoHS Status	ROHS3 Compliant

B32673Z6684K000 Product Details

B32673Z6684K000 Overview

The rated (DC) voltage (URdc) of systems should be 630V.Electrical devices have 0.886 22.50mm lead spacing.To power systems, URac must be set at 310V V.Temperatures of -55°C~110°C are suitable for operating the device.
