Name: 2SK4151TZ-E
Brand: Renesas Electronics America
SKU: 2SK4151TZ-E
Availability: InStock

new-10%

2SK4151TZ-E

Manufacturer part number:2SK4151TZ-E

Manufacturer:Renesas Electronics America

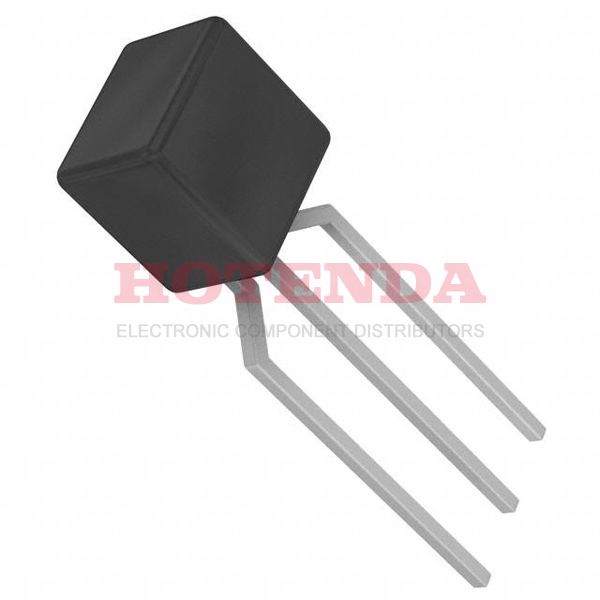

Description:MOSFET N-CH 150V 1A TO-92

Case Package:SOT-23

Datasheet:2SK4151TZ-E Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-226-3, TO-92-3 (TO-226AA)
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	150°C TJ
Packaging	Tape & Reel (TR)
Published	2010
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
ECCN Code	EAR99
Technology	MOSFET (Metal Oxide)
Terminal Position	BOTTOM
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	3
Qualification Status	Not Qualified
Number of Elements	1
Configuration	SINGLE WITH BUILT-IN DIODE
Power Dissipation-Max	750mW Ta
Operating Mode	ENHANCEMENT MODE
Turn On Delay Time	8 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	1.95 Ω @ 500mA, 4V
Input Capacitance (Ciss) (Max) @ Vds	98pF @ 10V
Current - Continuous Drain (Id) @ 25°C	1A Ta
Gate Charge (Qg) (Max) @ Vgs	3.5nC @ 4V
Rise Time	12ns
Drain to Source Voltage (Vdss)	150V
Drive Voltage (Max Rds On,Min Rds On)	2.5V 4V
Vgs (Max)	±10V
Fall Time (Typ)	19 ns
Turn-Off Delay Time	34 ns
Continuous Drain Current (ID)	1A
Gate to Source Voltage (Vgs)	10V
Drain-source On Resistance-Max	0.0025Ohm
Pulsed Drain Current-Max (IDM)	4A
DS Breakdown Voltage-Min	150V
RoHS Status	ROHS3 Compliant

About 2SK4151TZ-E

The 2SK4151TZ-E from Renesas Electronics America is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 150V 1A TO-92.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the 2SK4151TZ-E, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
