Name: IPP65R660CFDAAKSA1
Brand: Infineon Technologies
SKU: IPP65R660CFDAAKSA1
Availability: InStock

new-10%

IPP65R660CFDAAKSA1

Manufacturer part number:IPP65R660CFDAAKSA1

Manufacturer:Infineon Technologies

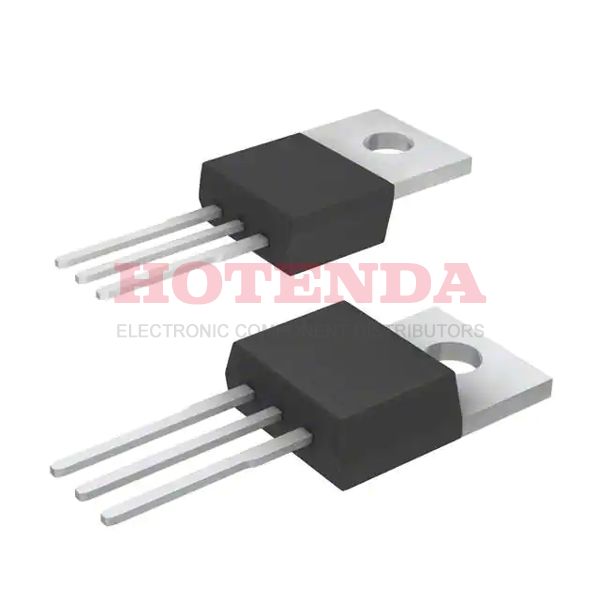

Description:MOSFET N-CH 650V TO-220-3

Case Package:SOT-23

Datasheet:IPP65R660CFDAAKSA1 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	16 Weeks
Mount	Through Hole
Mounting Type	Through Hole
Package / Case	TO-220-3
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-40°C~150°C TJ
Packaging	Tube
Published	2008
Series	Automotive, AEC-Q101, CoolMOS™
JESD-609 Code	e3
Pbfree Code	no
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	3
Terminal Finish	Tin (Sn)
Technology	MOSFET (Metal Oxide)
Peak Reflow Temperature (Cel)	NOT SPECIFIED
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Number of Elements	1
Power Dissipation-Max	62.5W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	62.5W
Turn On Delay Time	9 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	660m Ω @ 3.2A, 10V
Vgs(th) (Max) @ Id	4.5V @ 200μA
Halogen Free	Halogen Free
Input Capacitance (Ciss) (Max) @ Vds	543pF @ 100V
Current - Continuous Drain (Id) @ 25°C	6A Tc
Gate Charge (Qg) (Max) @ Vgs	20nC @ 10V
Rise Time	8ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	10 ns
Turn-Off Delay Time	40 ns
Continuous Drain Current (ID)	6A
JEDEC-95 Code	TO-220AB
Gate to Source Voltage (Vgs)	20V
Max Dual Supply Voltage	650V
Drain Current-Max (Abs) (ID)	6A
Drain-source On Resistance-Max	0.66Ohm
Height	15.95mm
Length	10.36mm
Width	4.57mm
RoHS Status	RoHS Compliant
Lead Free	Contains Lead

About IPP65R660CFDAAKSA1

The IPP65R660CFDAAKSA1 from Infineon Technologies is a high-performance microcontroller designed for a wide range of embedded applications. This component features MOSFET N-CH 650V TO-220-3.

Key Features

Advanced AVR architecture for efficient processing
Wide operating temperature range: -40°C to 85°C
Low power consumption for energy-efficient applications
Comprehensive peripheral set including SPI, UART, and USART interfaces

Applications

This microcontroller is ideal for various applications including:

Industrial control systems
Consumer electronics
Automotive systems
IoT devices
Medical equipment

Technical Support

Hotenda provides comprehensive technical support for the IPP65R660CFDAAKSA1, including datasheets, application notes, and design resources. Our team of engineers is available to assist with your design challenges.
