Name: AUIRFR3607
Brand: Infineon Technologies
SKU: AUIRFR3607
Availability: InStock

new-10%

AUIRFR3607

Manufacturer part number:AUIRFR3607

Manufacturer:Infineon Technologies

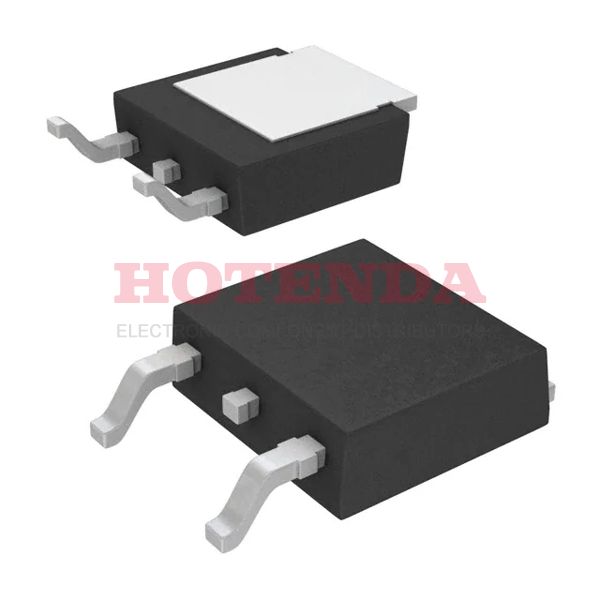

Description:AUIRFR3607 datasheet pdf and Transistors - FETs, MOSFETs - Single product details from Infineon Technologies stock available on our website

Case Package:SOT-23

Datasheet:AUIRFR3607 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Plating	Tin
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-252-3, DPak (2 Leads + Tab), SC-63
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~175°C TJ
Packaging	Tube
Published	2011
Series	HEXFET®
JESD-609 Code	e3
Part Status	Discontinued
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
ECCN Code	EAR99
Additional Feature	HIGH RELIABILITY, ULTRA-LOW RESISTANCE
Subcategory	FET General Purpose Power
Technology	MOSFET (Metal Oxide)
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	260
[email protected] Reflow Temperature-Max (s)	30
Base Part Number	AUIRFR3607
JESD-30 Code	R-PSSO-G2
Number of Elements	1
Power Dissipation-Max	140W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	140W
Case Connection	DRAIN
Turn On Delay Time	16 ns
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	9m Ω @ 46A, 10V
Vgs(th) (Max) @ Id	4V @ 100μA
Input Capacitance (Ciss) (Max) @ Vds	3070pF @ 50V
Current - Continuous Drain (Id) @ 25°C	56A Tc
Gate Charge (Qg) (Max) @ Vgs	84nC @ 10V
Rise Time	110ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	96 ns
Turn-Off Delay Time	43 ns
Continuous Drain Current (ID)	56A
Threshold Voltage	2V
JEDEC-95 Code	TO-252AA
Gate to Source Voltage (Vgs)	20V
Drain Current-Max (Abs) (ID)	80A
Drain-source On Resistance-Max	0.009Ohm
Drain to Source Breakdown Voltage	75V
Height	2.39mm
Length	6.73mm
Width	6.22mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	ROHS3 Compliant

AUIRFR3607 Product Details

AUIRFR3607 Description

The AUIRFR3607 is an N-channel power MOSFET with a very low ON-resistance per silicon area thanks to the use of cutting-edge fabrication methods. A 175°C junction operating temperature, quick switching, and increased repeating avalanche rating are other characteristics of this design. These characteristics work together to make this design a very dependable and effective device.
