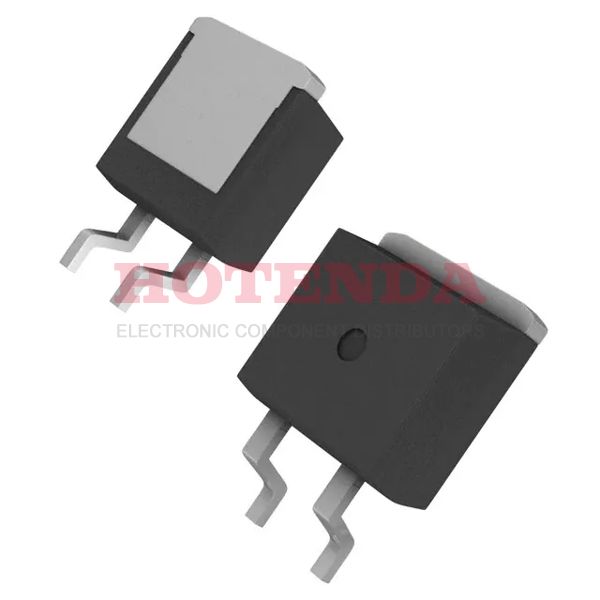

IXTA2N80

Manufacturer part number:IXTA2N80

Manufacturer:IXYS

Description:MOSFET N-CH 800V 2A TO-263

Case Package:SOT-23

Datasheet:IXTA2N80 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Mount	Surface Mount
Mounting Type	Surface Mount
Package / Case	TO-263-3, D2Pak (2 Leads + Tab), TO-263AB
Number of Pins	3
Transistor Element Material	SILICON
Operating Temperature	-55°C~150°C TJ
Packaging	Bulk
Published	2003
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Terminal Finish	Matte Tin (Sn)
Additional Feature	AVALANCHE RATED
Technology	MOSFET (Metal Oxide)
Terminal Form	GULL WING
Peak Reflow Temperature (Cel)	NOT SPECIFIED
Reach Compliance Code	not_compliant
[email protected] Reflow Temperature-Max (s)	NOT SPECIFIED
Pin Count	4
JESD-30 Code	R-PSSO-G2
Qualification Status	Not Qualified
Number of Elements	1
Power Dissipation-Max	54W Tc
Element Configuration	Single
Operating Mode	ENHANCEMENT MODE
Power Dissipation	54W
Case Connection	DRAIN
FET Type	N-Channel
Transistor Application	SWITCHING
Rds On (Max) @ Id, Vgs	6.2 Ω @ 500mA, 10V
Vgs(th) (Max) @ Id	5.5V @ 250μA
Input Capacitance (Ciss) (Max) @ Vds	440pF @ 25V
Current - Continuous Drain (Id) @ 25°C	2A Tc
Gate Charge (Qg) (Max) @ Vgs	22nC @ 10V
Rise Time	18ns
Drive Voltage (Max Rds On,Min Rds On)	10V
Vgs (Max)	±20V
Fall Time (Typ)	15 ns
Turn-Off Delay Time	30 ns
Continuous Drain Current (ID)	2A
Gate to Source Voltage (Vgs)	20V
Drain Current-Max (Abs) (ID)	2A
Drain to Source Breakdown Voltage	800V
Pulsed Drain Current-Max (IDM)	8A
Avalanche Energy Rating (Eas)	200 mJ
RoHS Status	ROHS3 Compliant
