405PHB250K2H

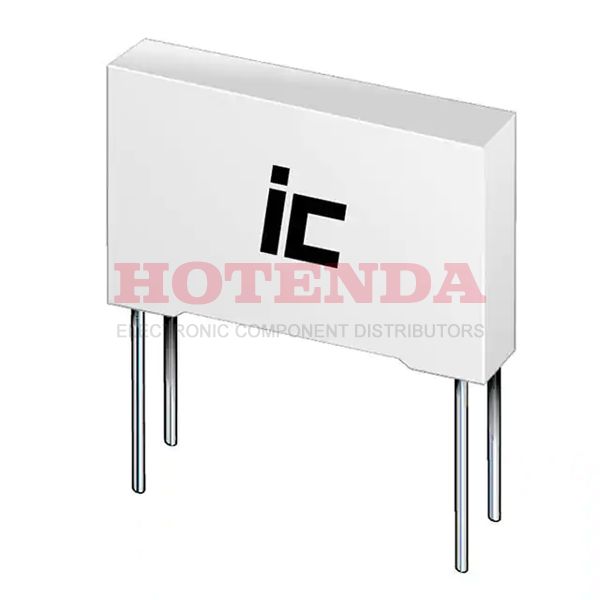

  • 405PHB250K2H - PHB 4μF Film Capacitor ±10% Radial PC Pins 250V-DC 160V-AC Polypropylene (PP), Metallized Through Hole
  • 405PHB250K2H - PHB 4μF Film Capacitor ±10% Radial PC Pins 250V-DC 160V-AC Polypropylene (PP), Metallized Through Hole

405PHB250K2H

405PHB250K2H

Illinois Capacitor

PHB 4μF Film Capacitor ±10% Radial PC Pins 250V-DC 160V-AC Polypropylene (PP), Metallized Through Hole

SOT-23

405PHB250K2H Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Factory Lead Time 17 Weeks
Mount Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Dielectric MaterialPolypropylene (PP), Metallized
Operating Temperature-40°C~100°C
PackagingBulk
Published 2016
Series PHB
Size / Dimension 1.260Lx0.512W 32.00mmx13.00mm
Tolerance ±10%
JESD-609 Code e3
Pbfree Code yes
Part StatusActive
Moisture Sensitivity Level (MSL) 1 (Unlimited)
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications High Frequency, Switching
Additional FeatureRATED AC VOLTAGE (V): 160
HTS Code8532.25.00.70
Capacitance 4μF
Voltage - Rated DC 250V
Voltage - Rated AC 160V
Lead Pitch 27.5082mm
Capacitor Type FILM CAPACITOR
ESR (Equivalent Series Resistance) 3.8mOhm
Lead Spacing1.083 27.50mm
Height Seated (Max) 0.866 22.00mm
RoHS StatusROHS3 Compliant
In-Stock:2856 items

Pricing & Ordering

QuantityUnit PriceExt. Price
378$2.89500$1094.31

405PHB250K2H Product Details

405PHB250K2H Overview


A device with a 3.8mOhm ESR (Equivalent Series Resistance) has been identified.Electrical devices have 1.083 27.50mm lead spacing.Temperatures of -40°C~100°C are suitable for operating the device.

405PHB250K2H Features


3.8mOhm equivalent series resistance (ESR)


405PHB250K2H Applications


There are a lot of Illinois Capacitor
405PHB250K2H applications of film capacitors.


  • RF Modules
  • Mobile communications
  • Satellite TV
  • Global positioning systems
  • Filters
  • VCO's
  • Matching networks
  • Snubbering
  • Filtering
  • IGBT
