ECQ-V1154JM

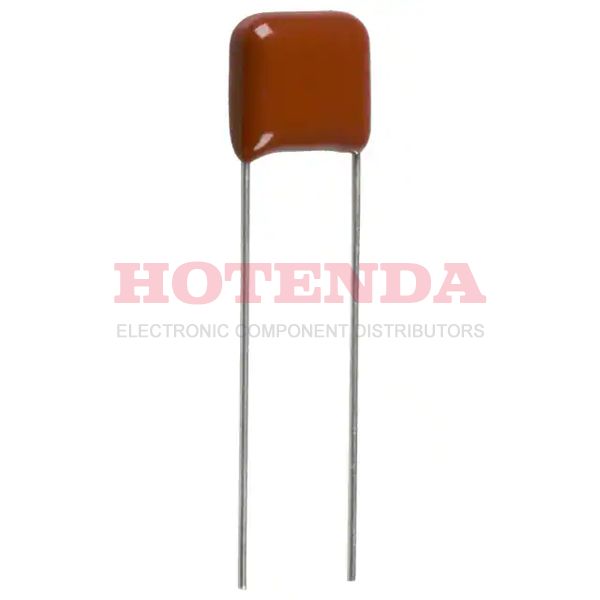

  • ECQ-V1154JM - ECQ-V 0.15μF Film Capacitor ±5% Radial PC Pins 100V-DC 100V-AC Polyester, Metallized - Stacked PCB, Through Hole
  • ECQ-V1154JM - ECQ-V 0.15μF Film Capacitor ±5% Radial PC Pins 100V-DC 100V-AC Polyester, Metallized - Stacked PCB, Through Hole

ECQ-V1154JM

ECQ-V1154JM

Panasonic Electronic Components

ECQ-V 0.15μF Film Capacitor ±5% Radial PC Pins 100V-DC 100V-AC Polyester, Metallized - Stacked PCB, Through Hole

SOT-23

ECQ-V1154JM Datasheet PDF

non-compliant

Technical Specifications

Parameter NameValue
TypeParameter
Mount PCB, Through Hole
Mounting Type Through Hole
Package / Case Radial
Terminal Shape WIRE
Number of Pins 2
Dielectric MaterialPolyester, Metallized - Stacked
Operating Temperature-40°C~105°C
PackagingBulk
Published 2010
Series ECQ-V
Size / Dimension 0.402Lx0.130W 10.20mmx3.30mm
Tolerance ±5%
JESD-609 Code e3
Pbfree Code yes
Part StatusObsolete
Moisture Sensitivity Level (MSL) Not Applicable
Number of Terminations 2
Termination PC Pins
ECCN Code EAR99
Terminal Finish Tin (Sn)
Applications General Purpose
Capacitance 0.15μF
Voltage - Rated DC 100V
Depth 3.3mm
Voltage - Rated AC 100V
Lead Pitch 7.5mm
Capacitor Type FILM CAPACITOR
Lead Length 20mm
Dielectric PET
Lead Spacing0.295 7.50mm
Lead Diameter 500 μm
Size Code 4013
Lead/Base Style Straight
Height 9mm
Height Seated (Max) 0.394 10.00mm
Radiation HardeningNo
REACH SVHC No SVHC
RoHS StatusRoHS Compliant
Lead Free Lead Free
In-Stock:3326 items

ECQ-V1154JM Product Details

ECQ-V1154JM Overview


Electrical devices such as this have a lead spacing of 0.295 7.50mm.In a temperature range of -40°C~105°C, the device can be operated.

ECQ-V1154JM Features



ECQ-V1154JM Applications


There are a lot of Panasonic Electronic Components ECQ-V1154JM applications of film capacitors.

  • Mobile communications
  • Filtering
  • Matching networks
  • Lighting
  • RF Modules
  • Battery management system
  • Blocking
  • IGBT
  • TV and monitor sets
  • VCO's
