Name: B32559C1473K289
Brand: TDK Electronics Inc.
SKU: B32559C1473K289
Availability: InStock

new-10%

B32559C1473K289

Manufacturer part number:B32559C1473K289

Manufacturer:TDK Electronics Inc.

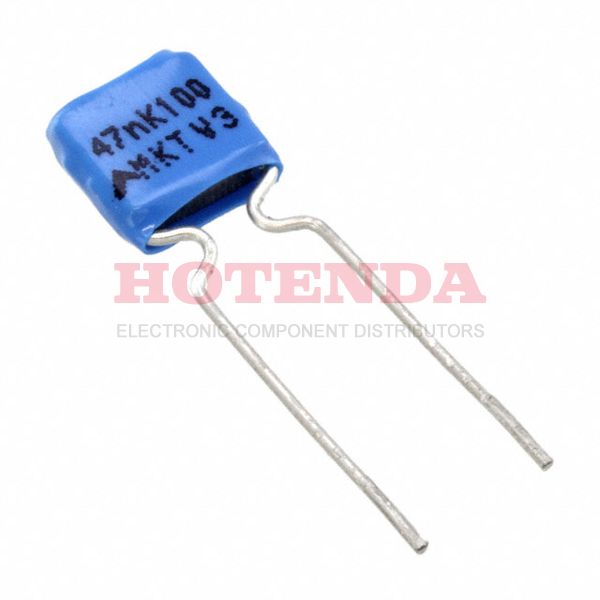

Description:B32559 0.047μF Film Capacitor ±10% Radial PC Pins 100V-DC 63V-AC Polyester, Polyethylene Terephthalate (PET) - Stacked

Case Package:SOT-23

Datasheet:B32559C1473K289 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	8 Weeks
Mounting Type	Through Hole
Package / Case	Radial
Surface Mount	NO
Terminal Shape	WIRE
Dielectric Material	Polyester, Polyethylene Terephthalate (PET) - Stacked
Operating Temperature	-55°C~125°C
Packaging	Tape & Box (TB)
Published	2009
Series	B32559
Size / Dimension	0.276Lx0.118W 7.00mmx3.00mm
Tolerance	±10%
JESD-609 Code	e3
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Number of Terminations	2
Termination	PC Pins
ECCN Code	EAR99
Terminal Finish	Matte Tin (Sn)
Applications	High Pulse, DV/DT
Additional Feature	RATED AC VOLTAGE (V): 63
HTS Code	8532.25.00.70
Capacitance	0.047μF
Voltage - Rated DC	100V
Packing Method	AMMO PACK
Terminal Pitch	5mm
Voltage - Rated AC	63V
Capacitor Type	FILM CAPACITOR
Lead Spacing	0.197 5.00mm
Rated (DC) Voltage (URdc)	100V
Size Code	2812
Rated (AC) Voltage (URac)	63V
Height Seated (Max)	0.256 6.50mm
Length	7mm
Width	3mm
RoHS Status	ROHS3 Compliant

B32559C1473K289 Product Details

B32559C1473K289 Overview

An internal (DC) voltage of 100V is required for systems to function.0.197 5.00mm is the lead spacing of this electrical device.In order for systems to be powered, a constant (AC) voltage (URac) is required.It is capable of operating at -55°C~125°C degrees Celsius.
