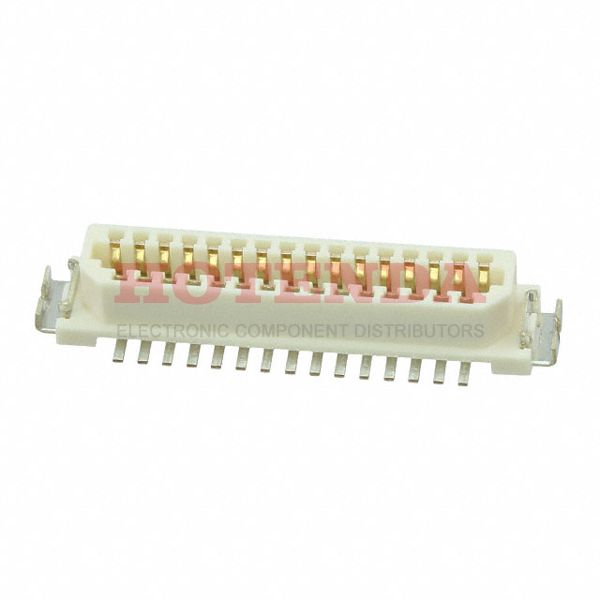

Name: DF9B-31S-1V(69)
Brand: Hirose Electric Co Ltd
SKU: DF9B-31S-1V(69)
Price: 2.21000 USD
Availability: InStock

new-10%

DF9B-31S-1V(69)

Manufacturer part number:DF9B-31S-1V(69)

Manufacturer:Hirose Electric Co Ltd

Description:DF9B-31S-1V(69) datasheet pdf and Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board) product details from Hirose Electric Co Ltd stock available on our website

Case Package:SOT-23

Datasheet:DF9B-31S-1V(69) Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	10 Weeks
Contact Material	Brass, Copper
Mount	Surface Mount
Mounting Type	Surface Mount
Housing Material	Polyamide
Packaging	Tape & Reel (TR)
Published	2003
Series	DF9
JESD-609 Code	e3
Feature	Solder Retention
Pbfree Code	yes
Part Status	Active
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	SMD/SMT
Connector Type	Receptacle, Outer Shroud Contacts
Number of Positions	31
Number of Rows	2
Gender	Receptacle
Voltage - Rated	150V
Additional Feature	POLARIZED
Subcategory	Headers and Edge Type Connectors
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Mixed Contacts	NO
Option	GENERAL PURPOSE
Pitch	0.039 1.00mm
Total Number of Contacts	31
Current Rating	500mA
Number of Conductors	ONE
Reference Standard	UL
Contact Finish	Gold
Reliability	COMMERCIAL
Number Of PCB Rows	2
PCB Contact Pattern	STAGGERED
Mating Information	MULTIPLE MATING PARTS AVAILABLE
Body Breadth	0.165 inch
Operating Temperature (Min)	-45°C
UL Flammability Code	94V-0
Body Depth	0.13 inch
Rated Current (Signal)	0.5A
Contact Style	BELLOWED TYPE
Contact Resistance	50mOhm
Insulation Resistance	500000000Ohm
Polarization Key	POLARIZED HOUSING
PCB Contact Row Spacing	4.4958 mm
Durability	100 Cycles
Contact Pattern	STAGGERED
Insulator Color	BEIGE
Contact Finish Thickness	8.00μin 0.203μm
Height Above Board	0.130 3.30mm
Stack Height (Mating)	4.3mm
Radiation Hardening	No
REACH SVHC	No SVHC
RoHS Status	RoHS Compliant
Lead Free	Lead Free

DF9B-31S-1V(69) Product Details

DF9B-31S-1V(69) Overview

The product comes in a package of Receptacle, Outer Shroud Contacts.It is necessary to use a Tape & Reel (TR) case for packaging the product.This device has a mounting type of Surface Mount.This is from the DF9 Series.Maintaining Solder Retention is easy.This part requires a Surface Mount socket.Moreover, there are a number of other features, including POLARIZED, to name just a few.
