M50-3202945

Manufacturer part number:M50-3202945

Manufacturer:Harwin Inc.

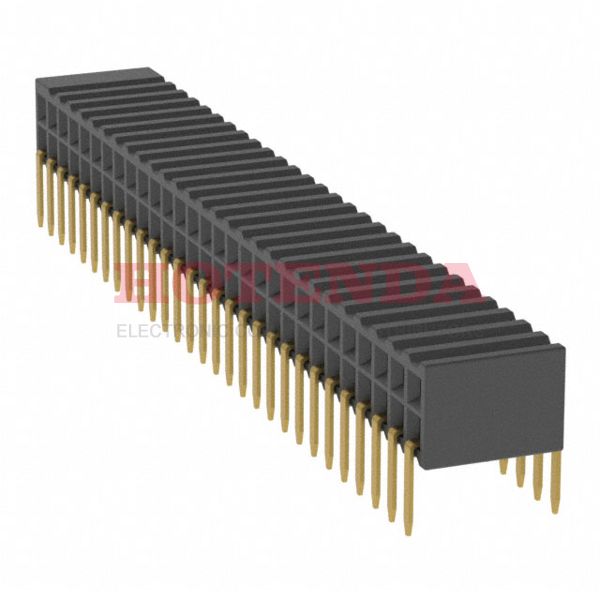

Description:2 Rows Receptacle Solder Phosphor Bronze Through Hole, Right Angle Tube Gold Polyamide (PA9T), Nylon 9T 58 Positions Female Socket

Case Package:SOT-23

Datasheet:M50-3202945 Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Contact Material	Phosphor Bronze
Mount	Through Hole
Mounting Type	Through Hole, Right Angle
Contact Shape	Square
Insulation Material	Polyamide (PA9T), Nylon 9T
Operating Temperature	-40°C~105°C
Packaging	Tube
Published	2013
Series	Archer M50
JESD-609 Code	e4
Pbfree Code	yes
Part Status	Obsolete
Moisture Sensitivity Level (MSL)	1 (Unlimited)
Termination	Solder
ECCN Code	EAR99
Connector Type	Receptacle
Number of Positions	58
Applications	General Purpose, Medical, Telecommunications
Number of Rows	2
Additional Feature	ROHS COMPLIANT
HTS Code	8536.69.40.40
Fastening Type	Push-Pull
Subcategory	Headers and Edge Type Connectors
Contact Finish - Mating	Gold
MIL Conformance	NO
DIN Conformance	NO
IEC Conformance	NO
Filter Feature	NO
Contact Type	Female Socket
Mixed Contacts	NO
Current Rating (Amps)	1A
Insulation Height	0.136 3.46mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.050 1.27mm
Insulation Color	Black
Number of Conductors	ONE
Reliability	COMMERCIAL
Body Length or Diameter	1.466 inch
Row Spacing - Mating	0.050 (1.27mm)
Contact Length - Post	0.094 2.40mm
Number Of PCB Rows	2
PCB Contact Pattern	RECTANGULAR
Body Breadth	0.136 inch
Contact Gender	Female
UL Flammability Code	94V-0
Insulation Resistance	1000000000Ohm
Mating Contact Pitch	0.05 inch
Polarization Key	POLARIZED HOUSING
Dielectric Withstanding Voltage	500VAC V
PCB Contact Row Spacing	5.08 mm
Durability	300 Cycles
Insertion Force-Max	.973 N
Plating Thickness	10μin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Contact Finish Thickness - Post	10.0μin 0.25μm
Length - Termination	0.094 inch
Material Flammability Rating	UL94 V-0
RoHS Status	ROHS3 Compliant

M50-3202945 Product Details

M50-3202945 Overview

The product comes in a package of Receptacle.Through Hole, Right Angle is the type of mounting for the device.To package the product, a Tube case is used.The product is a member of the Archer M50 Series.Among other features are ROHS COMPLIANT, to name only a few.The device may be used for the following applications: General Purpose, Medical, Telecommunications.It is mounted by Through Hole.It operates at an operating temperature of -40°C~105°C.
