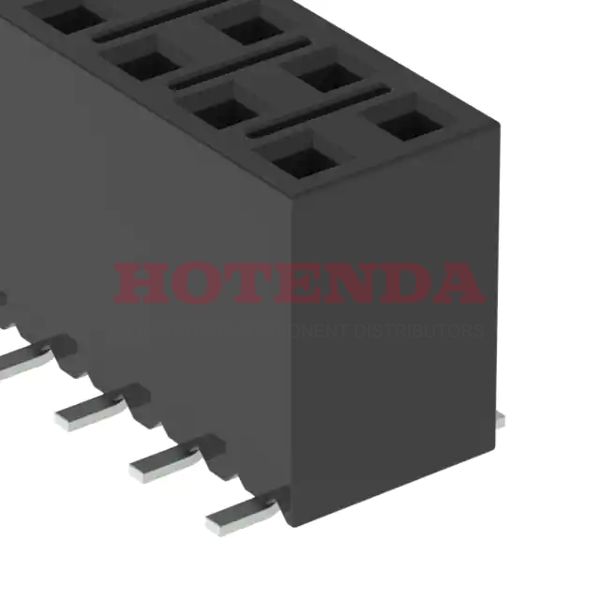

Name: SSM-106-L-DV-BE-LC-M
Brand: Samtec Inc.
SKU: SSM-106-L-DV-BE-LC-M
Availability: InStock

new-10%

SSM-106-L-DV-BE-LC-M

Manufacturer part number:SSM-106-L-DV-BE-LC-M

Manufacturer:Samtec Inc.

Description:2 Rows Receptacle, Bottom Entry Solder Phosphor Bronze Surface Mount Bulk Gold Liquid Crystal Polymer (LCP) 12 Positions Female Socket

Case Package:SOT-23

Datasheet:SSM-106-L-DV-BE-LC-M Datasheet PDF

RoHs Status:non-compliant

Parameter Name	Value
Type	Parameter
Factory Lead Time	3 Weeks
Contact Material	Phosphor Bronze
Mounting Type	Surface Mount
Contact Shape	Square
Insulation Material	Liquid Crystal Polymer (LCP)
Operating Temperature	-55°C~125°C
Packaging	Bulk
Published	2016
Series	SSM
Feature	Board Lock, Pick and Place
Part Status	Active
Termination	Solder
Connector Type	Receptacle, Bottom Entry
Number of Positions	12
Number of Rows	2
Gender	Female
Voltage - Rated	405VAC 572VDC
Fastening Type	Push-Pull
Contact Finish - Mating	Gold
Contact Type	Female Socket
Current Rating (Amps)	5.2A per Contact
Insulation Height	0.290 7.37mm
Style	Board to Board or Cable
Number of Positions Loaded	All
Pitch - Mating	0.100 2.54mm
Insulation Color	Black
Row Spacing - Mating	0.100 (2.54mm)
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10.0μin 0.25μm
Radiation Hardening	No
RoHS Status	ROHS3 Compliant
Lead Free	Lead Free

SSM-106-L-DV-BE-LC-M Product Details

SSM-106-L-DV-BE-LC-M Overview

This product is packaged in a Receptacle, Bottom Entry box.Surface Mount indicates that the device is mounted.An Bulk case is utilized for packaging the product.The product is a part of the SSM Series.In many ways, Board Lock, Pick and Place makes it more powerful.Operating temperature is set to -55°C~125°C.
